TBTA Bridge Rail

Report Number(s): 603911-1-3

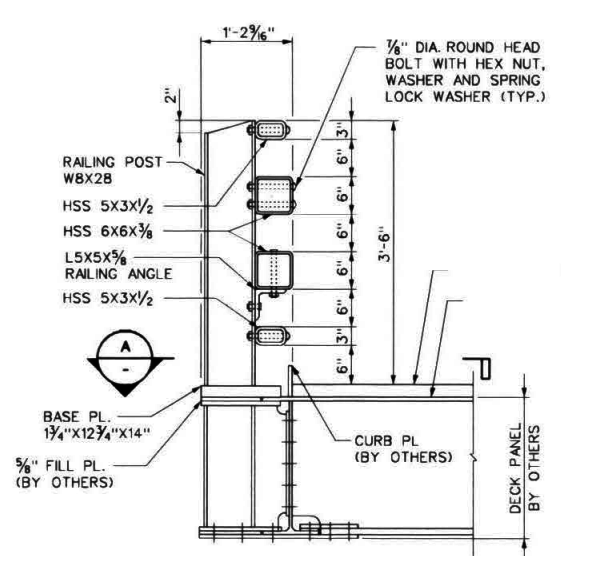

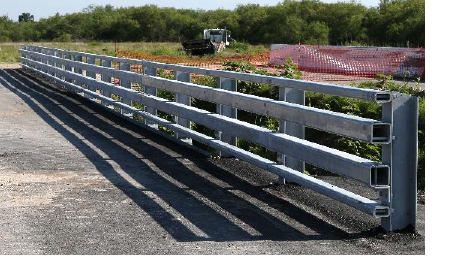

Description: Quadruple rail steel bridge rail 3 ft-6 inches in height, mounted on posts attached either to a 49 ft-6 inch bridge span (posts 3-9), or to a concrete foundation up to the bridge span and beyond the bridge span.

Test Level: 5

Eligibility Letter: B274

Barrier Type: Steel Post and Beam

MASH Test Number: 5-10, 5-11, 5-12

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: HNTB New York Engineering and architecture, P.C

Test Article Description

Height: 42"

Test Article Description

Material: Steel

Mounting Type: Deck

Aesthetic: No

See Through: Yes

Retrofit: No

Combo. (Veh/Ped): No
