Pinned-Down F-shape TCB on Asphalt

Report Number(s): 405160-25-1

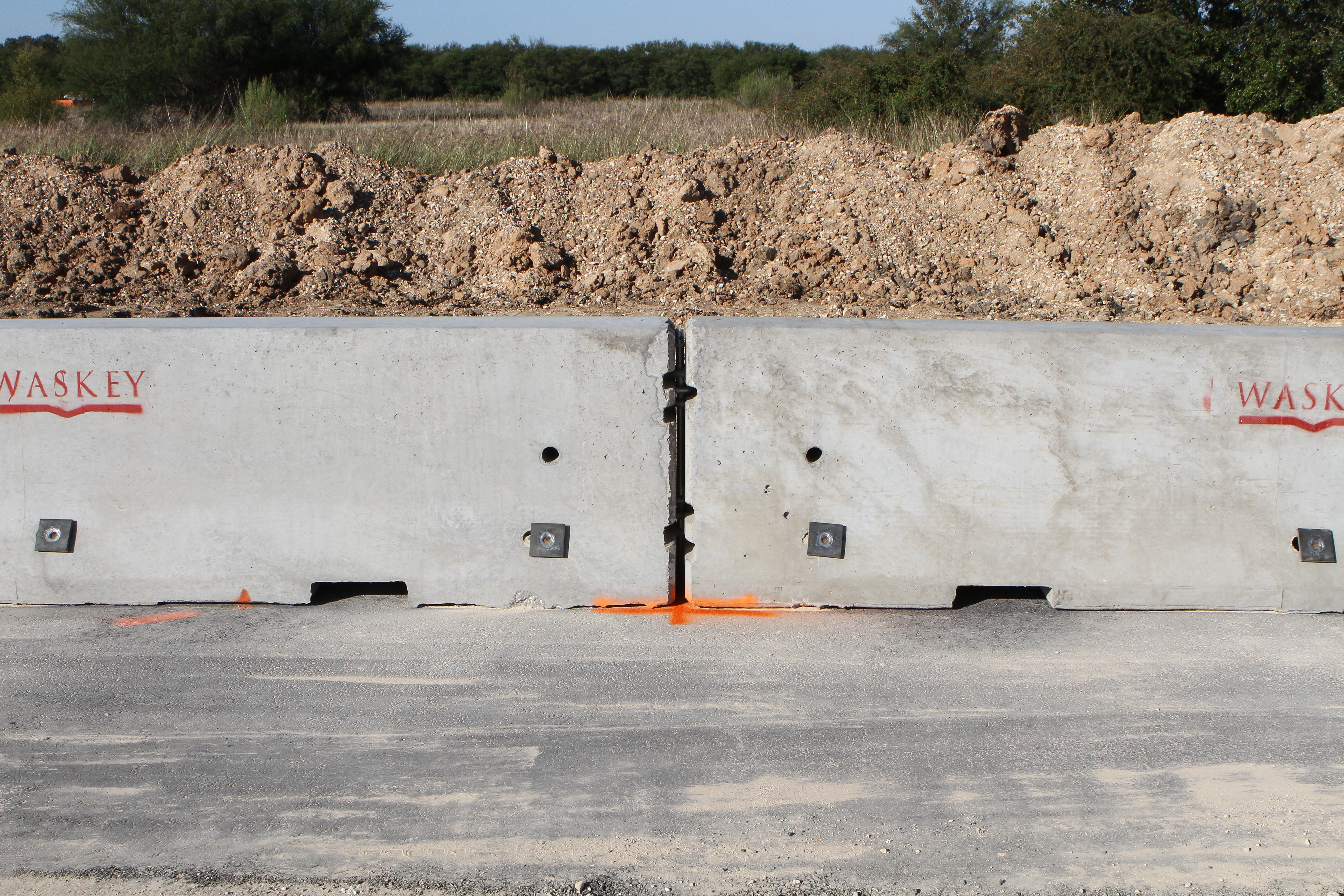

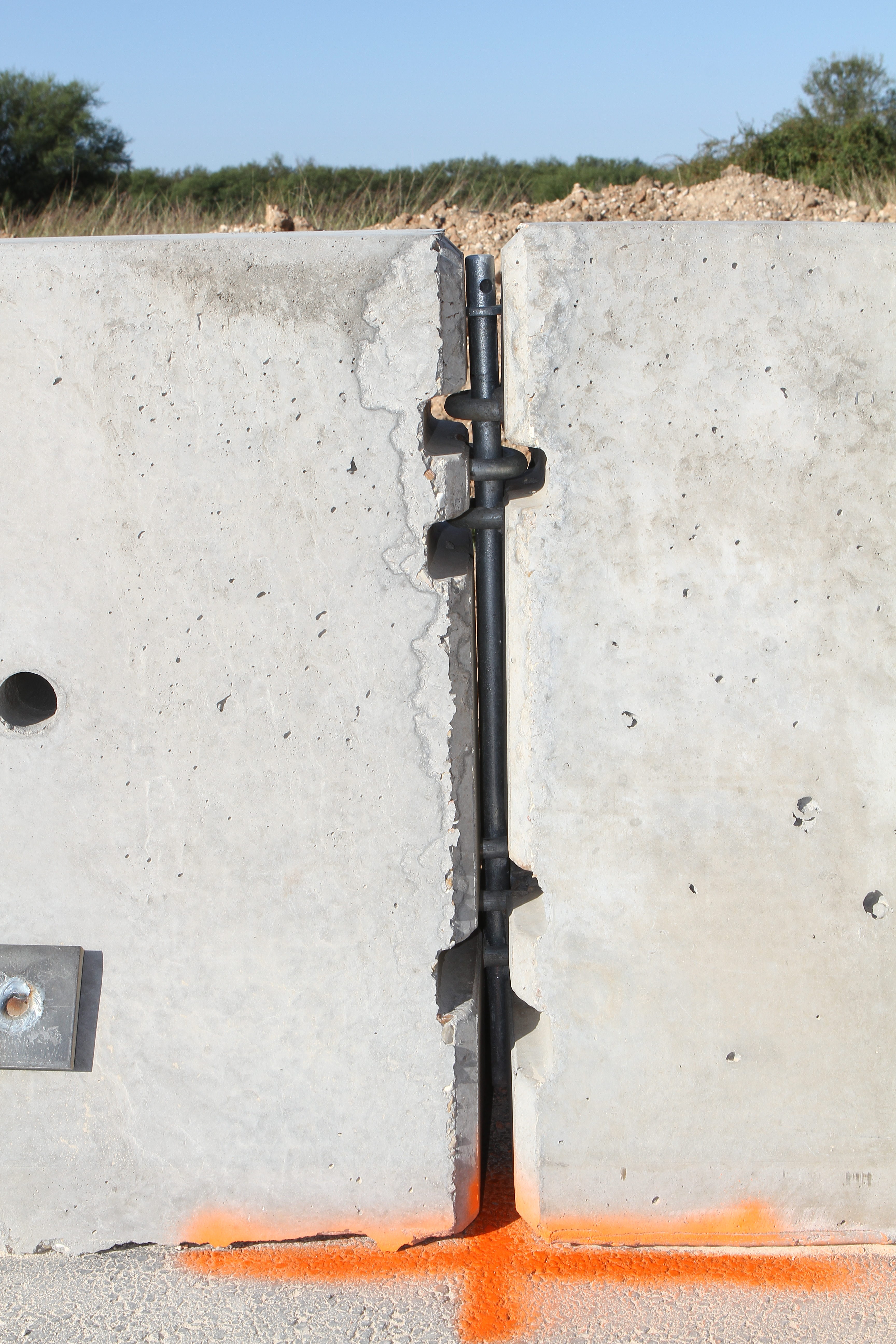

Description: Segments connected using pin-and-loop connections and placed adjacent to a 1.5H:1V slope

Test Level: 3

Barrier Type: F-Shape

MASH Test Number: 3-11

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: Washington State Department of Transportation

Test Article Description

Height: 32"

Section Length: 12' 6"

Connection Type: Pin and Loop

Ground Connection: Pinned

Deflection: 17.8"
