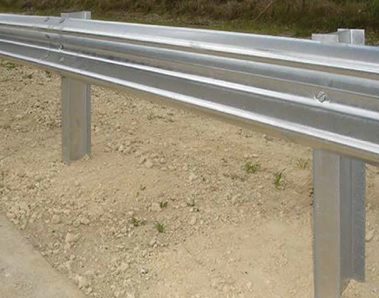

Trinity Guardrail System TGS™

Report Number(s): NA

Description: Strong post (W6x8.5# or W6 x 9#), no offset blocks, splices EITHER at mid-span or on post with counter-sunk head bolts.    Reduces site grading and R.O.W. required, as a result of eliminated blockouts.  Application: Roadside.

Test Level: 3

Eligibility Letter: B177

MASH Test Number: 3-10, 3-11

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Valtir, LLC formerly Trinity Highway Products

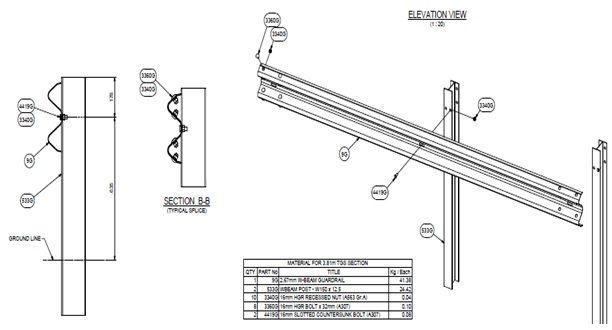

Test Article Description

Height: 31"

Rail Type: W-Beam

Rail Thickness: 12-Gauge

Post Type: Strong Posts (W6x8.5# or W6 x9#)

Material: Steel

Post Total Length: 72"

Post Spacing: 6' 3"

Blockout Type: None

Blockout Depth: None"

Aesthetic: No

Special Configuration: None
