Three-Rail Steel Bridge Rail with Curb

Report Number(s): NA

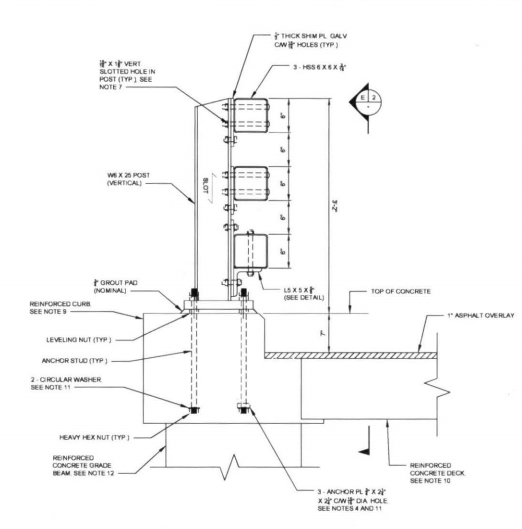

Description: Bridge rail consists of 7-inch tall curb, 3 rows of HSS 6x6x3/16 square tube rails

Test Level: 5

Eligibility Letter: B-317

Barrier Type: Steel Post and Beam

MASH Test Number: 5-10, 5-11, 5-12

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: New York State Thruway Authority

Test Article Description

Height: 45"

Deck Thickness: 10.5"

Test Article Description

Material: Combination

Mounting Type: Curb

Aesthetic: No

See Through: Yes

Retrofit: No

Combo. (Veh/Ped): No
