TL-4 36″ Single Slope Barrier On MSE Wall
Report Number(s): NCHRP PROJECT 22-20(2)

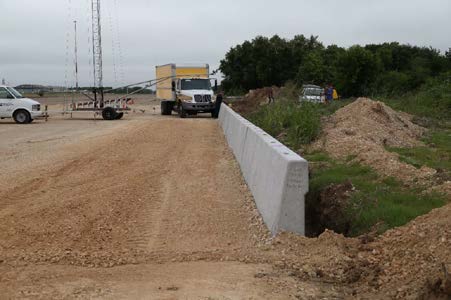

Description: 36-in tall Single Slope Barrier on a 10-ft high MSE wall with unreinforced concrete bearing pad
Test Level: 4
MASH Test Number: 4-12
Proprietary/Non-proprietary: Non-proprietary
Pass/Fail: Pass
Evaluation: Testing + Engineering Analysis
Sponsor: National Cooperative Highway Research Program

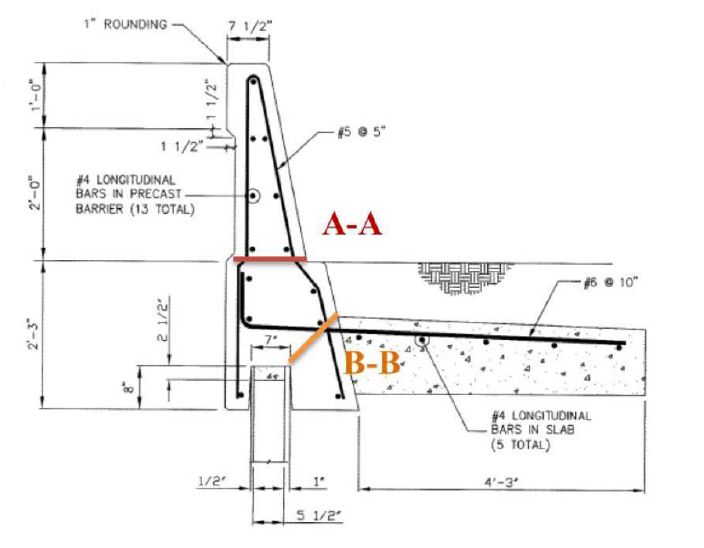

Test Article Description
Height: 36"
Top Base: 7.5"
Bottom Base: 24"
Ground Connection: Embedded
Test Article Description
Application: Roadside
Report(s):
http://apps.trb.org/cmsfeed/TRBNetProjectDisplay.asp?ProjectID=2735
