Top-Mounted cylindrical concrete foundation for weak post MGS on culverts

Report Number(s): TRP-03-368-19

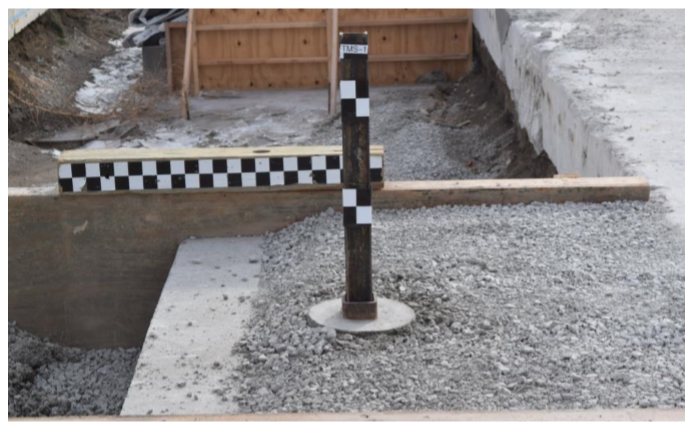

Description: The system was adapted from the MGS bridge railing (and its other adaptations) for attachment to the top slab of a concrete box culvert. The design concept was developed and evaluated through dynamic component testing. These reinforced concrete foundations were cylindrical in shape and incorporated a 4-in. x 4-in. (102-mm x 102-mm) steel tube socket, which was embedded down the center of the foundation. Each foundation was reinforced with both vertical rebar and transverse hoops

Test Level: 3

MASH Test Number: None

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Component Testing

Sponsor: Midwest Pooled Fund Program

Test Article Description

Height: 32"

Rail Type: W-Beam

Rail Thickness: Yet to be Updated

Post Type: S3 x 5.7

Material: Steel

Post Spacing: Yet to be Updated

Blockout Type: Yet to be updated

Aesthetic: No

Special Configuration: Culvert

Report(s):

TRP-03-368-19
