TxDOT 32-inch F-Shape Concrete Barrier Pinned to Concrete Pavement

Report Number(s): 0-6946-1

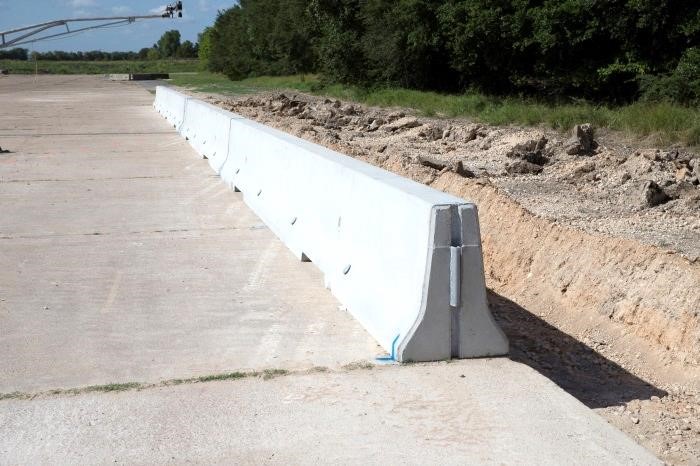

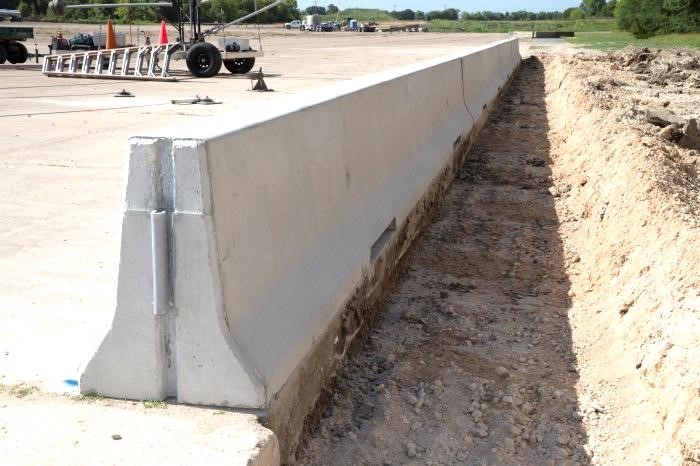

Description: Four standard F-Shape type restrained 32-inch tall median barriers, each nominally 30 ft in length with J-J Hooks end hook engagements.

Test Level: 3

Barrier Type: F-Shape

MASH Test Number: 3-11

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: Texas Department of Transportation

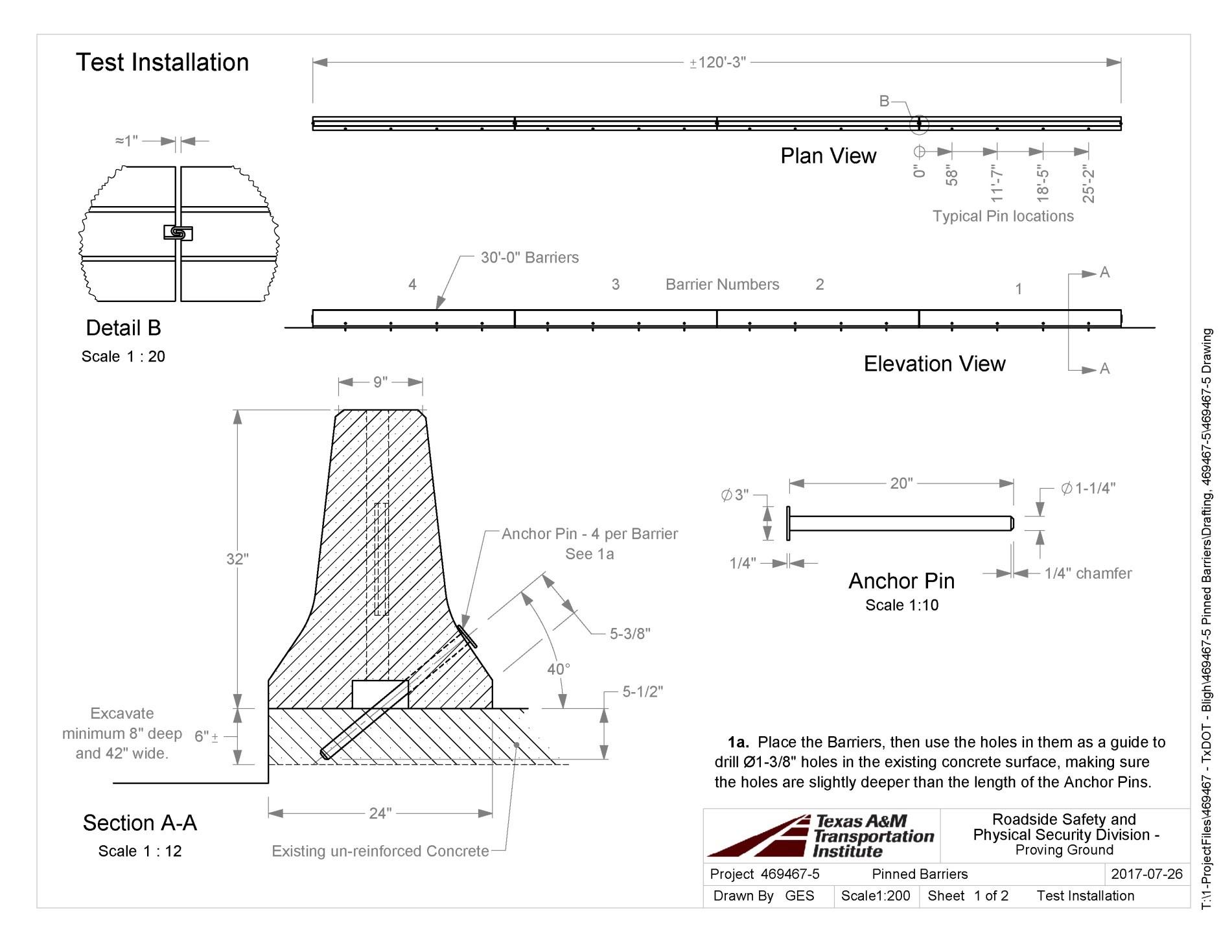

Test Article Description

Height: 32"

Section Length: 30"

Connection Type: J-J-Hooks

Ground Connection: Pinned

Deflection: 24.6"
