TxDOT 36-inch Vertical Wall

Report Number(s): 0-6946-1

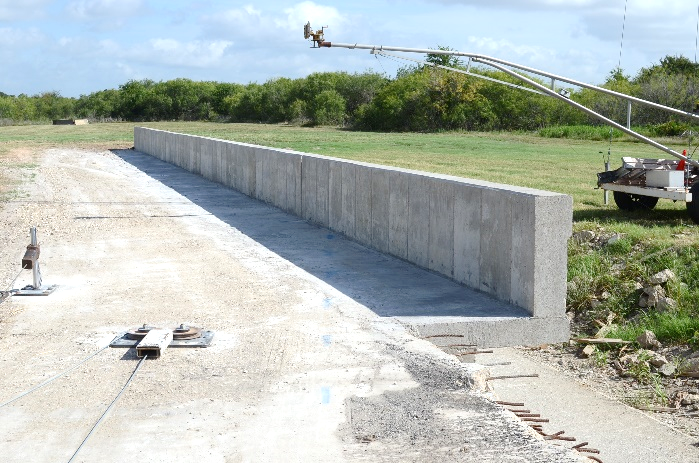

Description: 120 ft long, 36-inch tall concrete bridge parapet. The steel reinforced parapet was integral with a cantilever deck and vertical wall that were joined to an existing moment slab and deck at the site

Test Level: 4

Barrier Type: Vertical

MASH Test Number: 4-12

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: Texas Department of Transportation

Test Article Description

Height: 36"

Deck Thickness: 8"

Test Article Description

Material: Concrete

Mounting Type: Deck

Aesthetic: No

See Through: No

Retrofit: No

Combo. (Veh/Ped): No
