TXDOT C1W BRIDGE RAIL
Report Number(s): 0-6946-R3

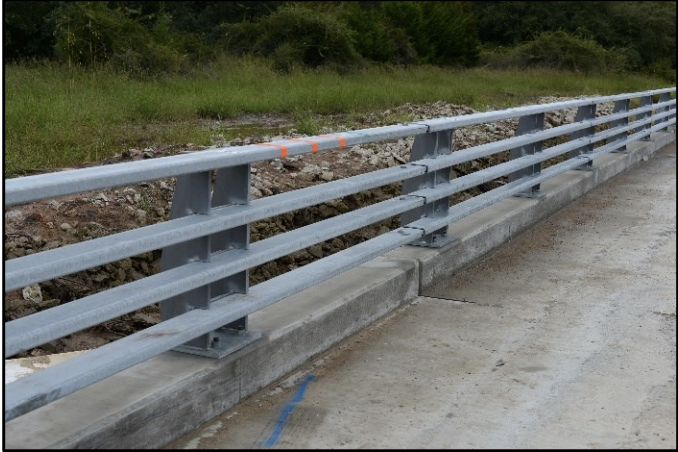

Description: The TxDOT C1W test installation consisted of four rectangular tubular steel rail elements attached to fabricated steel posts mounted on a concrete curb that was cast on an 8-inch-thick reinforced cantilevered concrete deck.
Test Level: 4
MASH Test Number: 4-12
Proprietary/Non-proprietary: Non-proprietary
Pass/Fail: Pass
Evaluation: Testing + Engineering Analysis
Sponsor: Texas Department of Transportation
Test Article Description
Height: 42"
Test Article Description
Material: Combination
Aesthetic: No
See Through: Yes
Retrofit: No
Combo. (Veh/Ped): Yes
Report(s):
