TxDOT C402 Bridge Rail

Report Number(s): 0-6946-R2

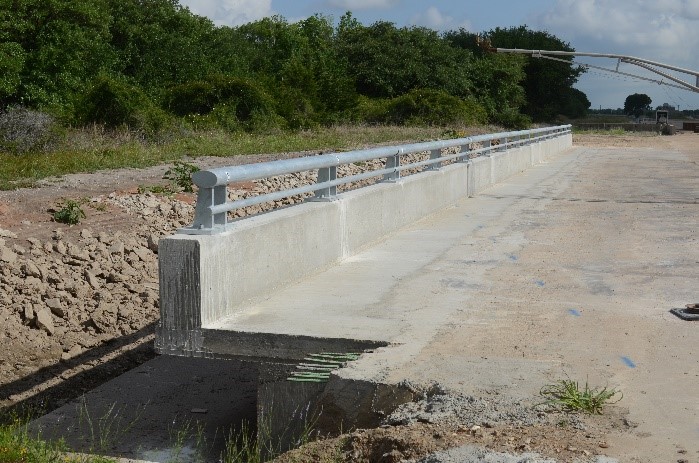

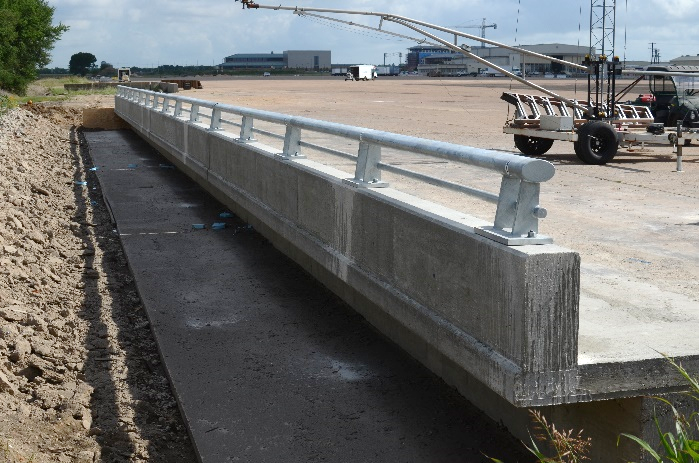

Description: 153-ft long reinforced concrete cantilevered deck and parapet, with integral steel posts and rails secured to the top of the parapet. The height from the road surface to the top of the parapet was 24 inches, and to the top of the steel rail was 42 inches.

Test Level: 4

Barrier Type: High Speed

MASH Test Number: 4-10, 4-11, 4-12

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Texas Department of Transportation

Test Article Description

Height: 42"

Deck Thickness: 8"

Test Article Description

Material: Combination

Mounting Type: Deck

Aesthetic: No

See Through: Yes

Retrofit: No

Combo. (Veh/Ped): Yes
