TxDOT C411 Bridge Rail – Texas Classic Rail

Report Number(s): 0-6946-R2

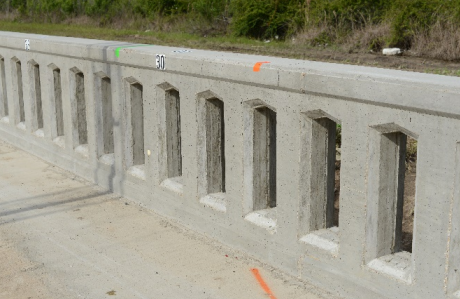

Description: The test installation was 75 ft long and consisted of a 42-inch tall reinforced concrete rail mounted on an 8-inch thick reinforced cantilevered concrete deck. The rail was 12 inches thick and consisted of 10-inch thick × 12-inch wide posts alternated with 10-inch deep × 24-inch tall × 6-inch wide windows on 18-inch centers positioned between upper and lower concrete beams.

Test Level: 2

Barrier Type: Aesthetic

MASH Test Number: 2-10, 2-11

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

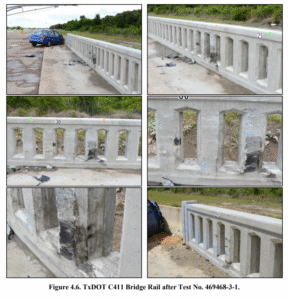

Evaluation: Full-Scale Crash Testing

Sponsor: Texas Department of Transportation
