TxDOT C412 Bridge Rail

Report Number(s): 0-6946-R2

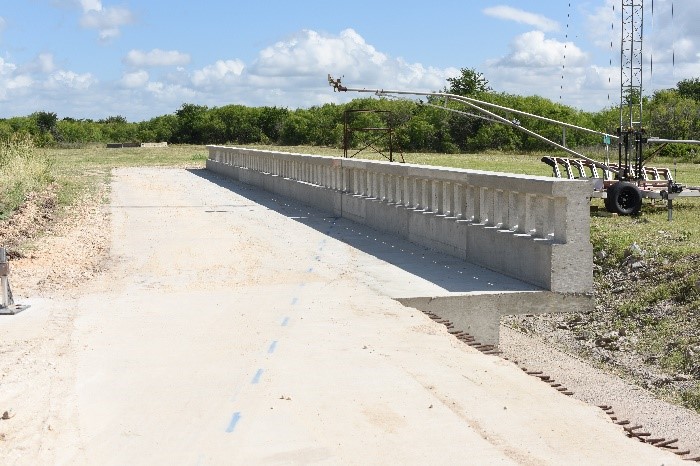

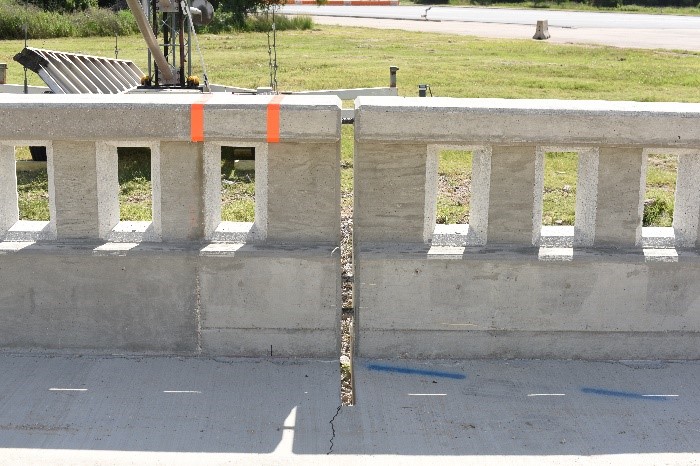

Description: A 119 ft-11½ inches long,  42-inch tall reinforced concrete wall, and consisted of a reinforced cantilevered concrete deck, 8½ inches thick, Because a variation of the C412 bridge rail was recently successfully tested to MASH TL-4, test designations 5-10 and 5-11 are deemed unnecessary; therefore, only MASH test designation 5-12 with an 80,000-lb tractor-van trailer was required to establish MASH TL-5 compliance.

Test Level: 5

Barrier Type: Aesthetic

MASH Test Number: 5-12

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: Texas Department of Transportation

Test Article Description

Height: 42"

Deck Thickness: 8.5"

Test Article Description

Material: Concrete

Mounting Type: Deck

Aesthetic: Yes

See Through: No

Retrofit: No

Combo. (Veh/Ped): Yes
