TXDOT LOW-PROFILE BARRIER

Report Number(s): 0-6946-R3

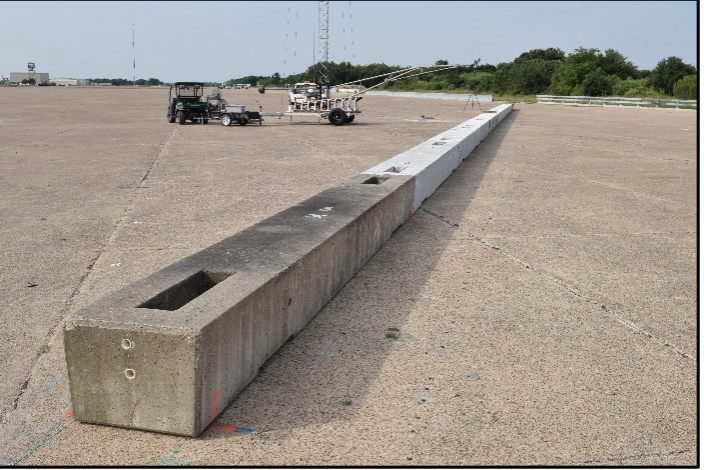

Description: The barrier consisted of 10 precast reinforced concrete barriers that were each 20 ft long and 20 inches tall. The width at the base of the barrier sections was 26 inches and flared out to 28 inches at the top. Adjacent segments were connected with two threaded rods that were inserted into a trough and passed through holes cast into the ends of each segment

Test Level: 2

MASH Test Number: 2-10, 2-11

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Texas Department of Transportation
