TxDOT Rubber Mounted Single Slope Barrier

Report Number(s): 0-6895-R1

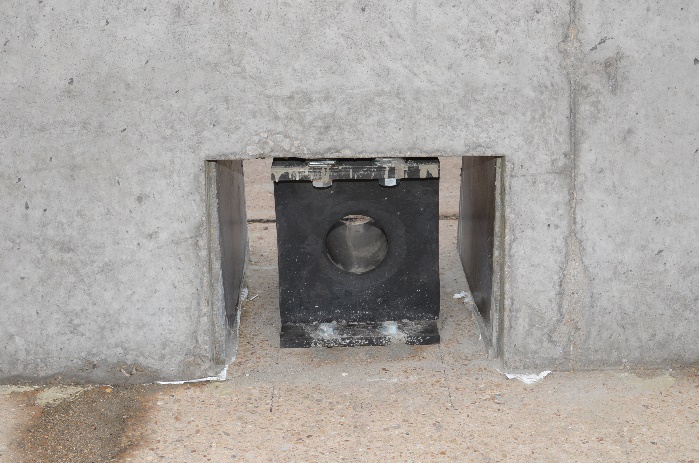

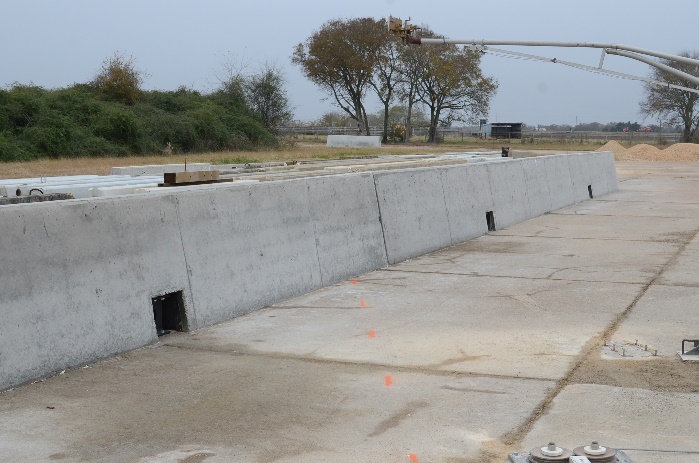

Description: 42 inches tall TxDOT Single Slope Concrete Barrier with 60-ft long section and rubber/elastomer shear fender.

Test Level: 4

Barrier Type: Cast-in-place

System Type: Concrete Barrier

MASH Test Number: 4-10, 4-11, 4-12

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Texas Department of Transportation

Test Article Description

Height: 42"

Aesthetic: No

Scupper: Yes

Barrier Material: Concrete
