TxDOT T1W Bridge Rail

Report Number(s): 0-6946-R2

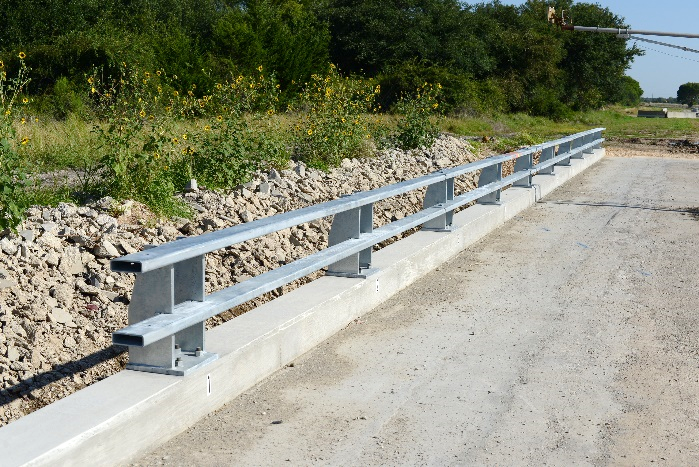

Description: The bridge rail is a 32-inch tall rail that consists of two rectangular tubular steel rail elements attached to fabricated steel posts mounted on a 9-inch tall concrete curb.

Test Level: 3

Barrier Type: Steel post and railing on top of concrete curb

MASH Test Number: 3-10, 3-11

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Texas Department of Transportation

Test Article Description

Height: 32"

Deck Thickness: 8"

Test Article Description

Material: Combination

Mounting Type: Curb

Aesthetic: No

See Through: Yes

Retrofit: No

Combo. (Veh/Ped): No
