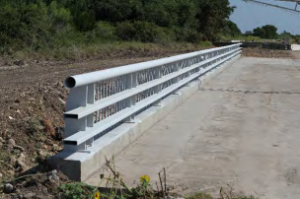

TxDOT Type C2P Bridge Rail

Report Number(s): TRP-9-1002-15-2

Description: Horizontal steel rails mounted on a 148-ft long concrete curb. Each rail comprised of four 39-ft 10-inch long (40-ft long nominal) segments.

Test Level: 4

Barrier Type: Aesthetic

MASH Test Number: 4-10, 4-11, 4-12

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Texas Department of Transportation

Test Article Description

Height: 42"

Deck Thickness: 8"

Test Article Description

Material: Steel

Mounting Type: Deck

Aesthetic: Yes

See Through: Yes

Retrofit: No

Combo. (Veh/Ped): Yes
