[FAILED] WSDOT Pin and Loop Concrete Barrier With Drainage Slots

Report Number(s): 405160-18-1

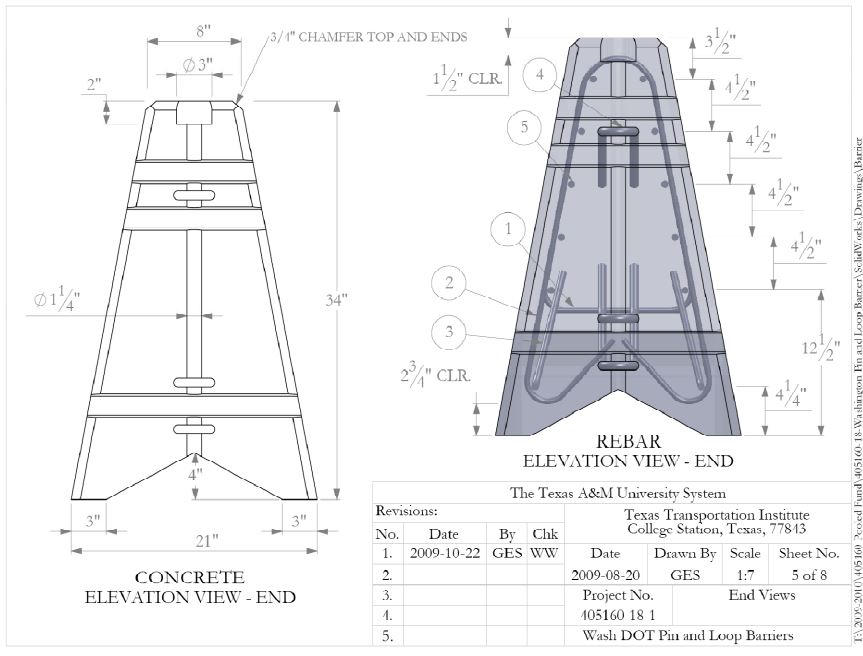

Description: 34"  tall WSDOT free standing pin and loop single slope concrete barrier with drainage slots.  Failed the MASH test 3-11 because the truck rolled over.

Test Level: 3

Barrier Type: Single Slope

Barrier Type: Pre-cast

System Type: Concrete Barrier

MASH Test Number: 3-11

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Fail

Evaluation: Testing + Engineering Analysis

Sponsor: Washington State Department of Transportation
