Zoneguard® Portable Barrier

Report Number(s): NA

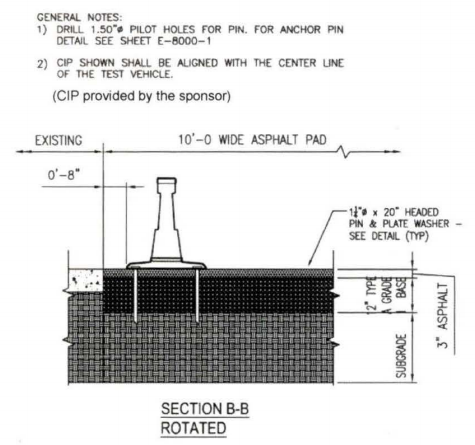

Description: The Zoneguard barrier was installed on a 3-inch thick asphalt pad with the traffic side edge of the base 8 inches from, and parallel to, the edge of the existing concrete apron. The barrier was secured to the asphalt pad with 1 ¼-inch diameter x 20-inch long pins every 33 ft-4 inches on center, with exception at each end of the installation.

Test Level: 3

Eligibility Letter: B-320

Barrier Type: Portable Longitudinal Steel Barrier

MASH Test Number: 3-10, 3-11

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Hill and Smith, Inc.

Test Article Description

Height: 32"

Connection Type: Interlocking U-shaped channel connectors

Ground Connection: Pinned
