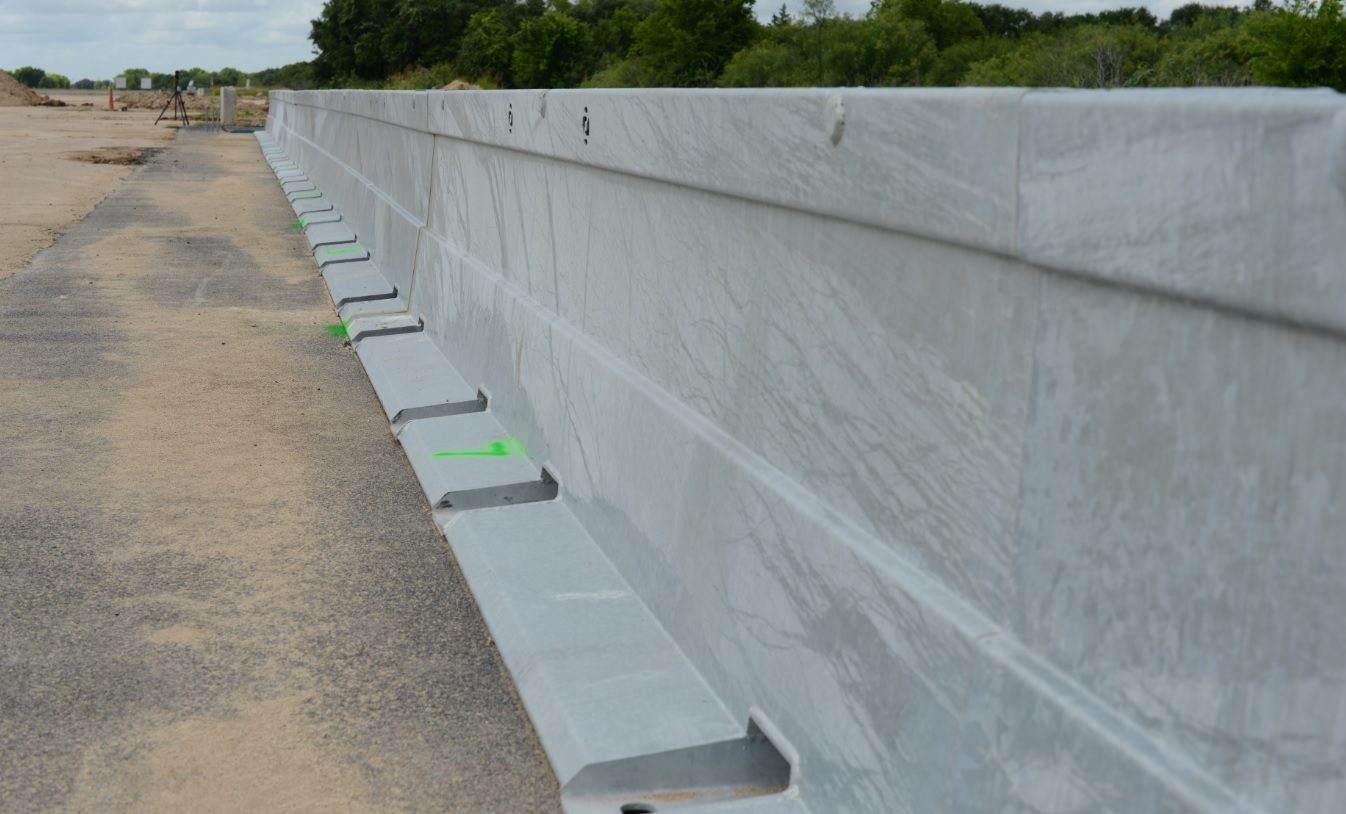

Zoneguard™ (Standard and Minimum Deflection Arrangements)

Report Number(s): NA

Description: Zoneguard™ portable longitudinal barrier system anchored in concrete every 33'-4" and at ends.

Test Level: 3

Eligibility Letter: B176A

Barrier Type: Portable longitudinal steel barrier

MASH Test Number: 3-10, 3-11

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Hill and Smith Ltd

Test Article Description

Height: 31.5"

Section Length: 50'

Connection Type: Bolted

Ground Connection: Pinned

Deflection: 4", 5", 74"
