Ermes End Terminal

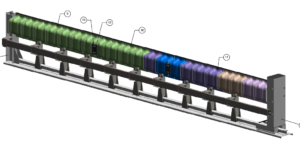

Ermes End Terminal is a fully-redirective, non-gating End Terminal tested according to MASH-16 criteria. It has a fontal trolley unit that allows a controlled deformation, a collapsable beam made up of a 10 modules that crush in a frontal impact to absorb energy and stop the vehicle in a controlled manner, and side steel tubolar for side impact. The unit is a 19.4 ft long, 11.41 in wide and 350 in high.

Test Level: 3

Eligibility Letter: CC-166

MASH Test Number: 3-30, 3-31, 3-32, 3-33, 3-34, 3-35

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: lhdu.stry AMS srl

Test Article Description

Aesthetic: No

Location: NA
