MAX-Tension™ Guardrail Terminal System (MAX™) TL-2

Report Number(s): NA

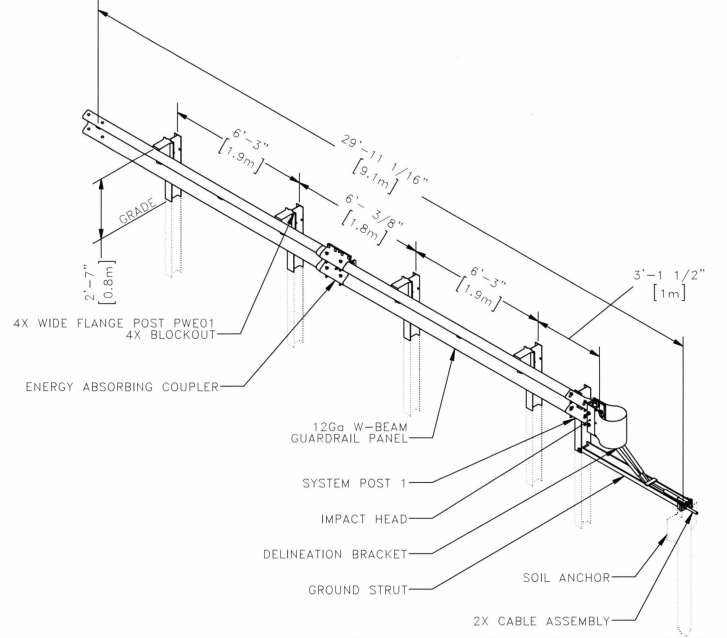

Description: The MAX-Tension™ Test Level 2 Guardrail Terminal System (MAX-TL2) is a non gating re-d irective end terminal for corrugated W-beam barrier systems in tangent configurations. The MAX-TL2 system utilizes tensioned cables, a telescoping panel, and a cutting tooth to absorb the kinetic energy and safely contain or redirect impacting vehicles. The system is comprised of a friction based energy absorbing impact head, two tension cables, a releasable post 1, a ground anchor assembly, and an energy absorbing coupler with integrated cutting tooth used in conjunction with standard AASHTO 12 Ga guardrail panels, posts, blockouts, and hardware. T

Test Level: 2

Eligibility Letter: CC134

System Type: W-Beam Guardrail Terminal

MASH Test Number: 2-30, 2-31, 2-32, 2-33, 2-34, 2-35, 2-37

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: Lindsay Transportation Solutions, Inc.

Test Article Description

Height: 31"

Aesthetic: No

Location: Yet to be updated
