MBEA T Terminal

Report Number(s): NA

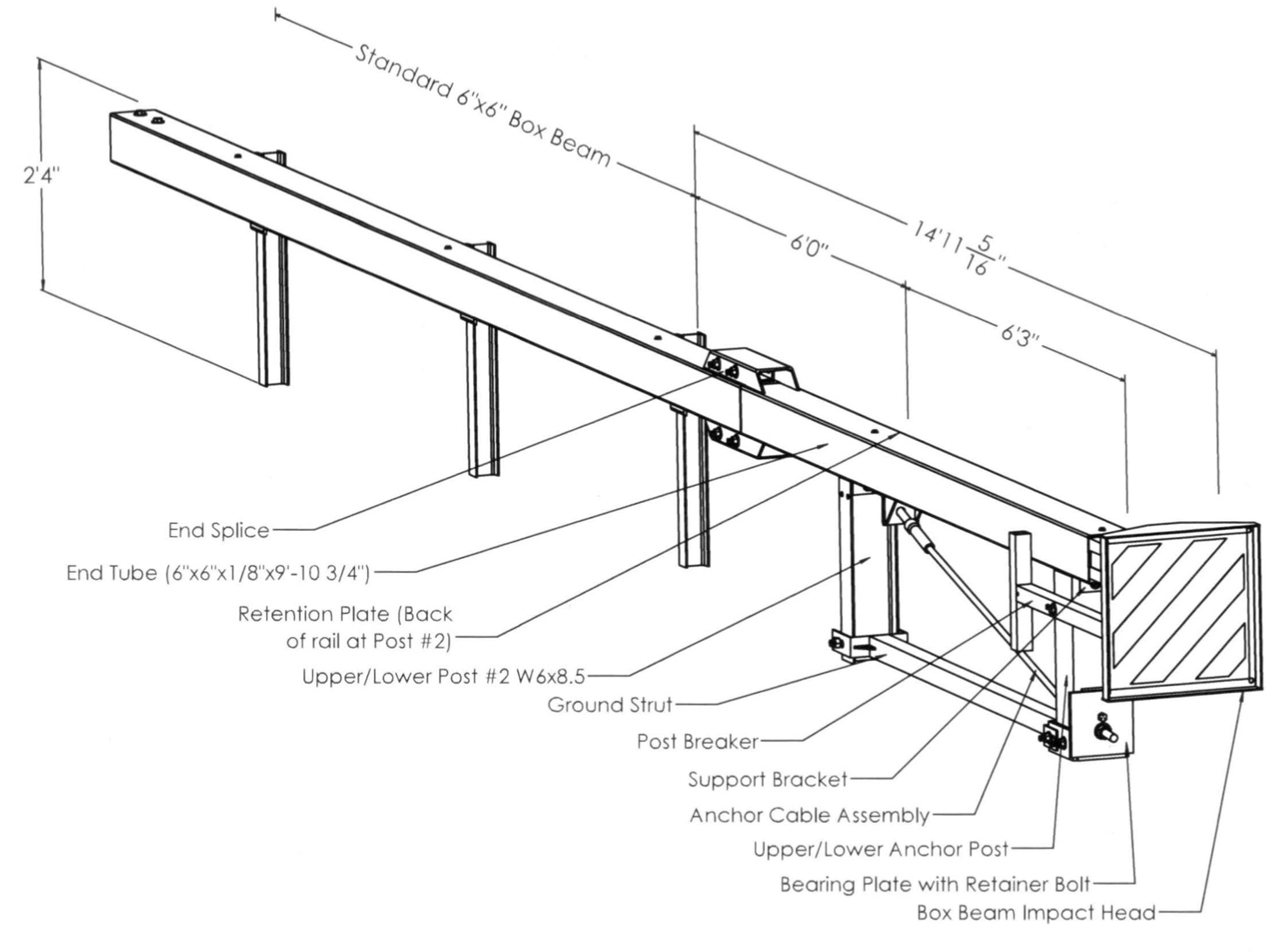

Description: The MBEAT terminal is a box-beam guardrail terminal consisting of: an impact head assembly, an end terminal rail section, and a breakaway cable anchorage system with a ground strut. The terminal has a total length of 11 ft 11 .3125 in. (3.6 m) from the nose of the impact head to the end of the terminal.

Test Level: 3

Eligibility Letter: CC-157

System Type: Box Beam Guardrail Terminal

MASH Test Number: 3-30, 3-31, 3-32, 3-33, 3-34, 3-35, 3-37

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: Road Systems, Inc.

Test Article Description

Height: 28"

Aesthetic: No

Location: Yet to be updated
