MFLEAT Terminal

Report Number(s): NA

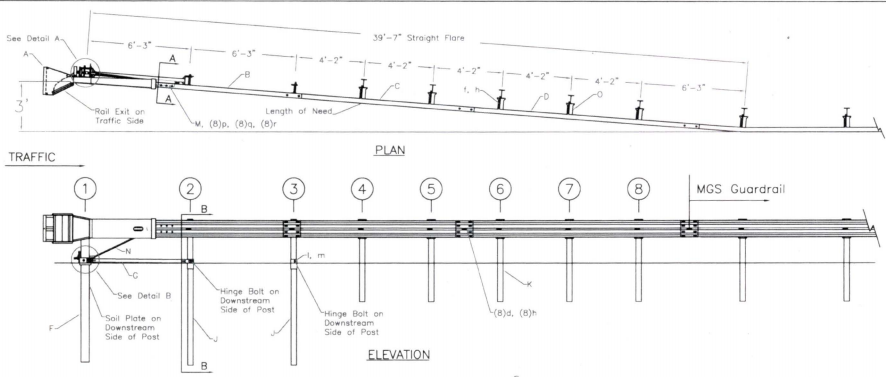

Description: The MASH FLEAT terminal Is a flared W-beam guardrai l terminal consisting of: an impact head asse mbly a breakaway cabl e anchorage system with a ground strut, three (3 ) rail sections, and eight (8) posts The terminal is installed with a straight flare of 3 ft (0.9 m) offset over a length of 39.6 ft (12.1 m)

Test Level: 3

Eligibility Letter: CC-143

System Type: W-Beam Guardrail Terminal

MASH Test Number: 3-30, 3-31, 3-32, 3-33, 3-34, 3-35, 3-37

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Road Systems, Inc

Test Article Description

Height: 31"

Aesthetic: No

Location: Yet to be updated
