MSKT-MASH Sequential Kinking Terminal

Report Number(s): NA

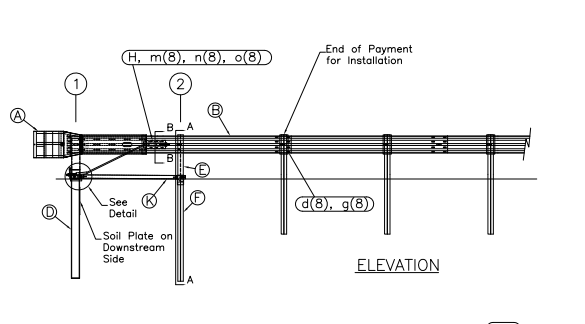

Description: The MSKT-SP-MGS Terminal, as approved in CC-126 dated June 10, 2016, is a W-beam guardrail terminal consisting of an impact head assembly, a breakaway cable anchorage system and a 12.5 ft (3.8 m) end section. The system requires use of 37.5 ft (11.4 m) of standard guardrail downstream mounted on 8-in. (203 mm) deep wood or composite blocks and 6 ft. long W6x9 (or W6x8.5) steel posts.

Test Level: 2

Eligibility Letter: CC-126D

System Type: W-Beam Guardrail Terminal

MASH Test Number: None

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Engineering Analysis

Sponsor: Road Systems, Inc.

Test Article Description

Height: Yet to be updated"

Aesthetic: No

Location: Yet to be updated

Report(s):

CC-126D
