MSKT-SP-MGS (MASH Sequential Kinking Terminal, Standard Posts, Midwest Guardrail System) with Wood Posts

Report Number(s): NA

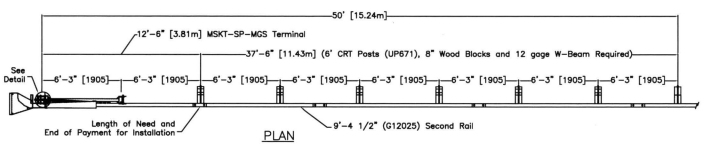

Description: W-beam guardrail terminal consisting of an impact head assembly, a breakaway cable anchorage system and a 12.5 ft end section. The system requires use of 37.5 ft of standard guardrail downstream mounted on 8-inch deep wood or composite blocks and 6 ft long W6x9 steel posts

Test Level: 3

Eligibility Letter: CC126C

System Type: W-Beam Guardrail Terminal

MASH Test Number: None

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Engineering Analysis

Sponsor: Road Systems, Inc.

Test Article Description

Height: 31"

Aesthetic: No

Location: Yet to be updated
