MSKT-SP-MGS Terminal (MASH 2016)

Report Number(s): NA

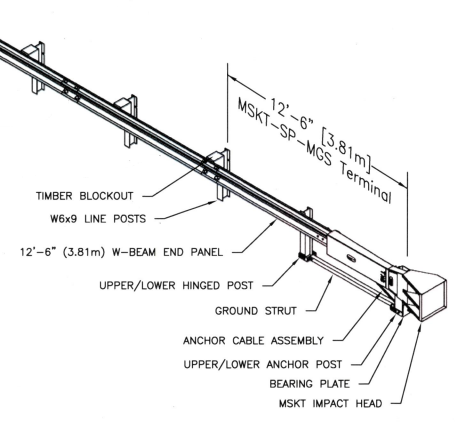

Description: The MSKT-SP-MGS  terminal is a W-beam guardrail terminal consisting of: an Impact head assembly, a breakaway cable anchorage system and a 12.5 ft (3.8 m) end section. The system requires use of a 37.5 ft (11.4 m) standard guardrail section downstream of the terminal incorporating MGS guardrail mounted on 8 in. deep wood or composite blocks and W6x9 (or W6x8.5) steel posts. A 9.4 ft (2.9 m) W-beam rail section is required downstream of Post 3 to transition the rail splices to mid-span.

Test Level: 3

Eligibility Letter: CC126G

System Type: W-Beam Guardrail Terminal

MASH Test Number: 3-30, 3-31, 3-32, 3-33, 3-34, 3-35, 3-37

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Road Systems, Inc.

Test Article Description

Height: 31"

Aesthetic: No

Location: Yet to be updated
