TL-2 Short Radius Guardrail Treatment

Report Number(s): 469137-3-1, 469137-3-2, 469138-3-3, 469138-3-4, 469138-3-5

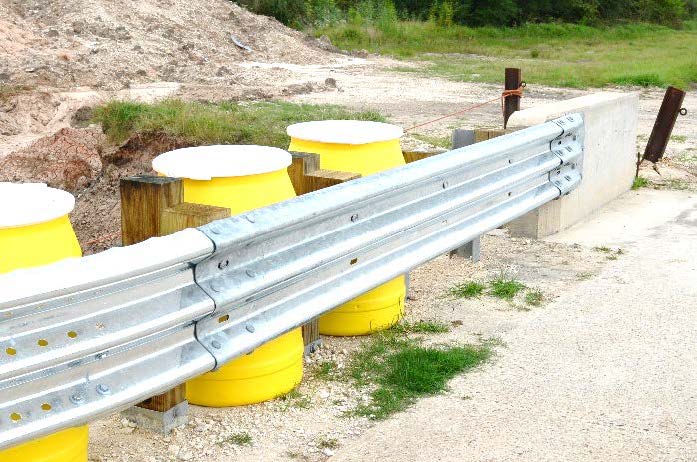

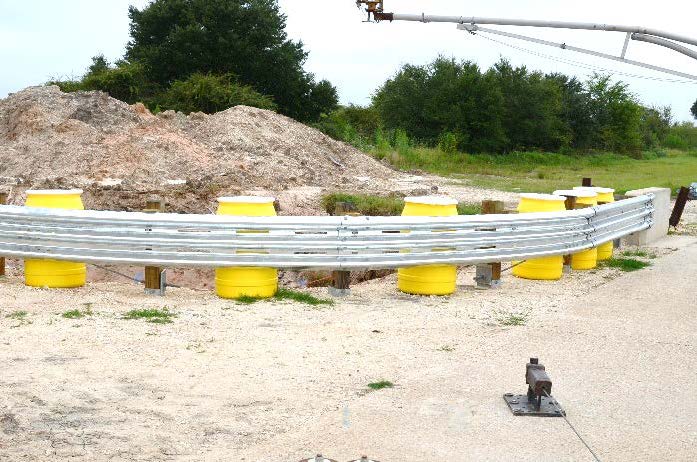

Description: 31-inch tall, 87-ft long, thrie-beam short radius guardrail system with curved 25-ft arc length thrie-beam section rolled to a 16-ft inside radius

Test Level: 2

System Type: Guardrail

MASH Test Number: 2-33, 2-32, 2-31, 2-35, 2-34

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Sponsor: Texas Department of Transportation

Test Article Description

Height: 31"

Aesthetic: No
