Type IIA Box Beam End Terminal

Report Number(s): NA

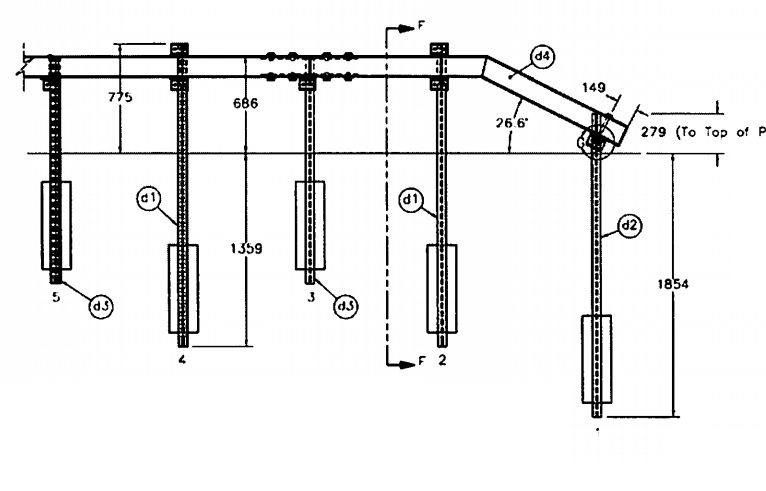

Description: The Type IIA End Terminal is a re-directive gating end terminal which is used with the New York State generic box beam guiderail (6 in. x 6 in. x 3/16 in. steel tube box beam). The cross section of the end terminal is identical to the generic box beam. It's use is limited to locations where available clear zone is less than 5 ft behind the leading end of the terminal.

Test Level: 3

Eligibility Letter: CC-107

System Type: Box Beam Guardrail Terminal

MASH Test Number: 3-34, 3-35

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: New York State Department of Transportation

Test Article Description

Height: 27"

Aesthetic: No

Location: Yet to be updated


NYBBT-5 FHWA Eligibility Letter CC107 acrobat-icon
