Free-Standing to Pinned F-Shape Temporary Barrier Transition on Concrete

Report Number(s): 405160-26

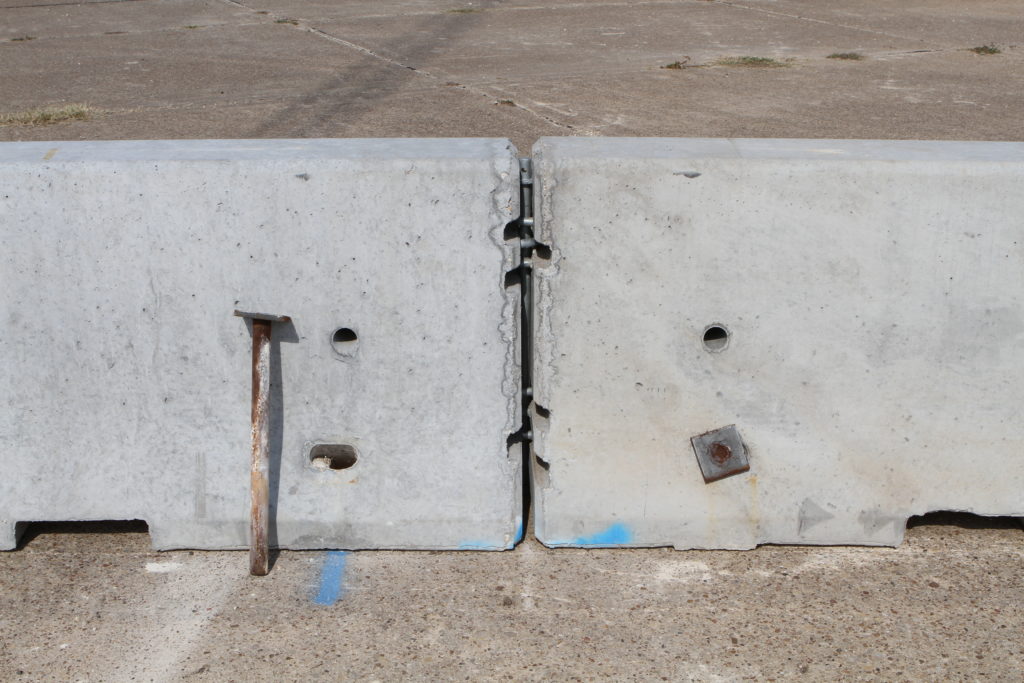

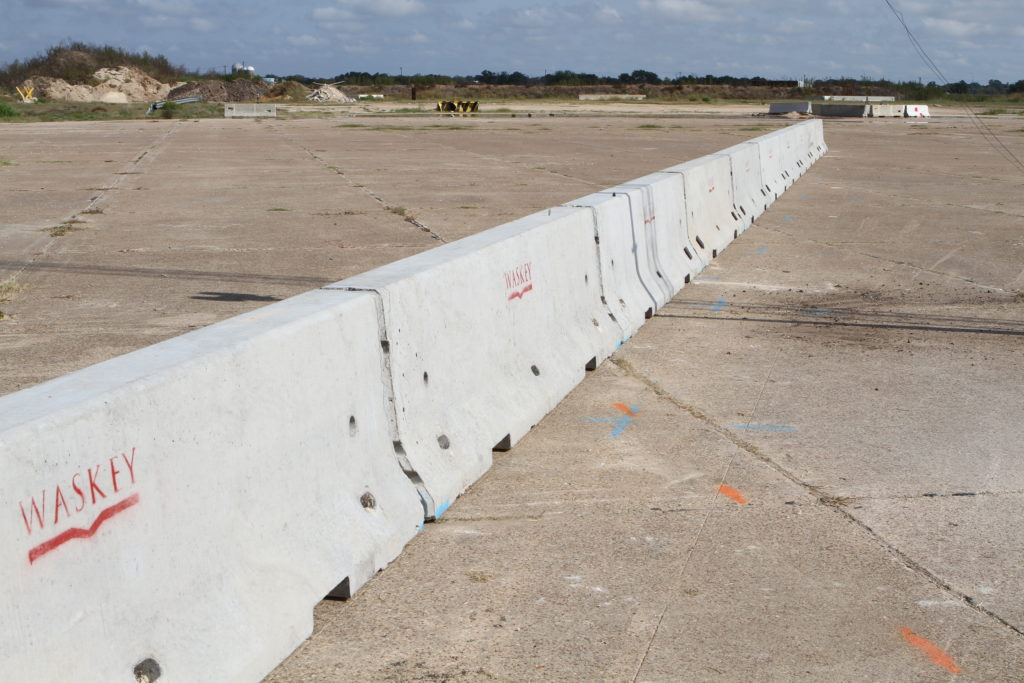

Description: Transition from free-standing F-shape barrier to pinned F-shape barrier on concrete

Test Level: 3

System Type: Concrete to Concrete

MASH Test Number: 3-21

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: Roadside Safety Research Program Pooled Fund

Test Article Description

Transition Type: Concrete

Nested: No

Rubrail: No

Rubrail Nested: No

Height: 32"

Post Material: None

Top Rail Blockout Depth: None"

Curb Present: No
