Metal Transition for Branching Concrete Barrier

Report Number(s): NA

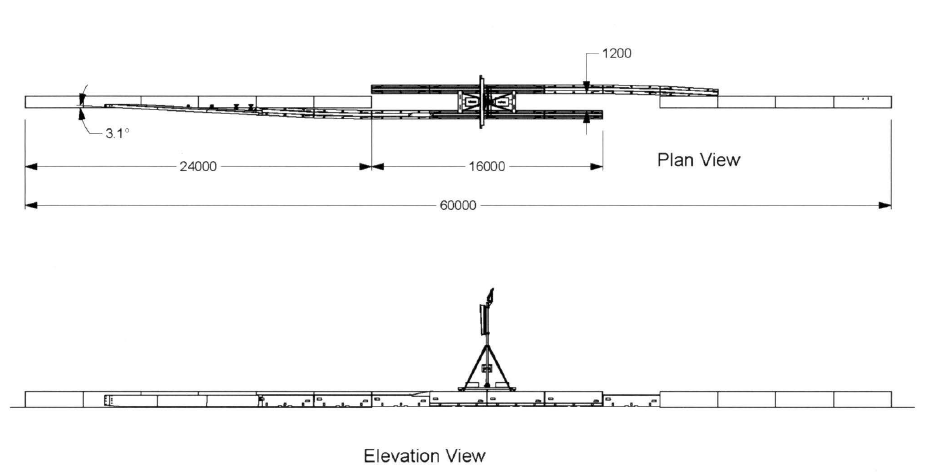

Description: This eligibility request is for a steel transition barrier section that connects a temporary concrete barrier to a permanent concrete barrier, such that the temporary barrier branches off from the permanent barrier and forms a row of temporary barrier installed parallel to the permanent barrier.

Test Level: 3

Eligibility Letter: B-281

System Type: Concrete to Concrete

MASH Test Number: 3-20, 3-21

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Powell Contracting Limited

Test Article Description

Transition Type: Steel Transition

Nested: No

Rubrail: No

Rubrail Nested: No

Height: 45.8"

Post Material: Steel

Top Rail Blockout Depth: None"

Curb Present: No
