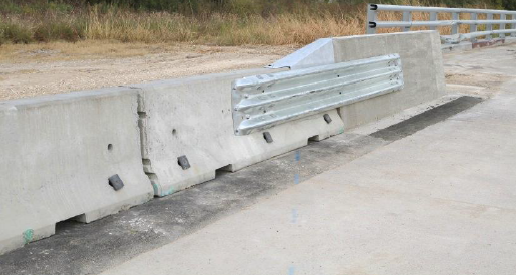

F-Shape Temporary Barrier Pinned on Asphalt to Permanent Single-Slope Barrier Transition

Report Number(s): 605641-1

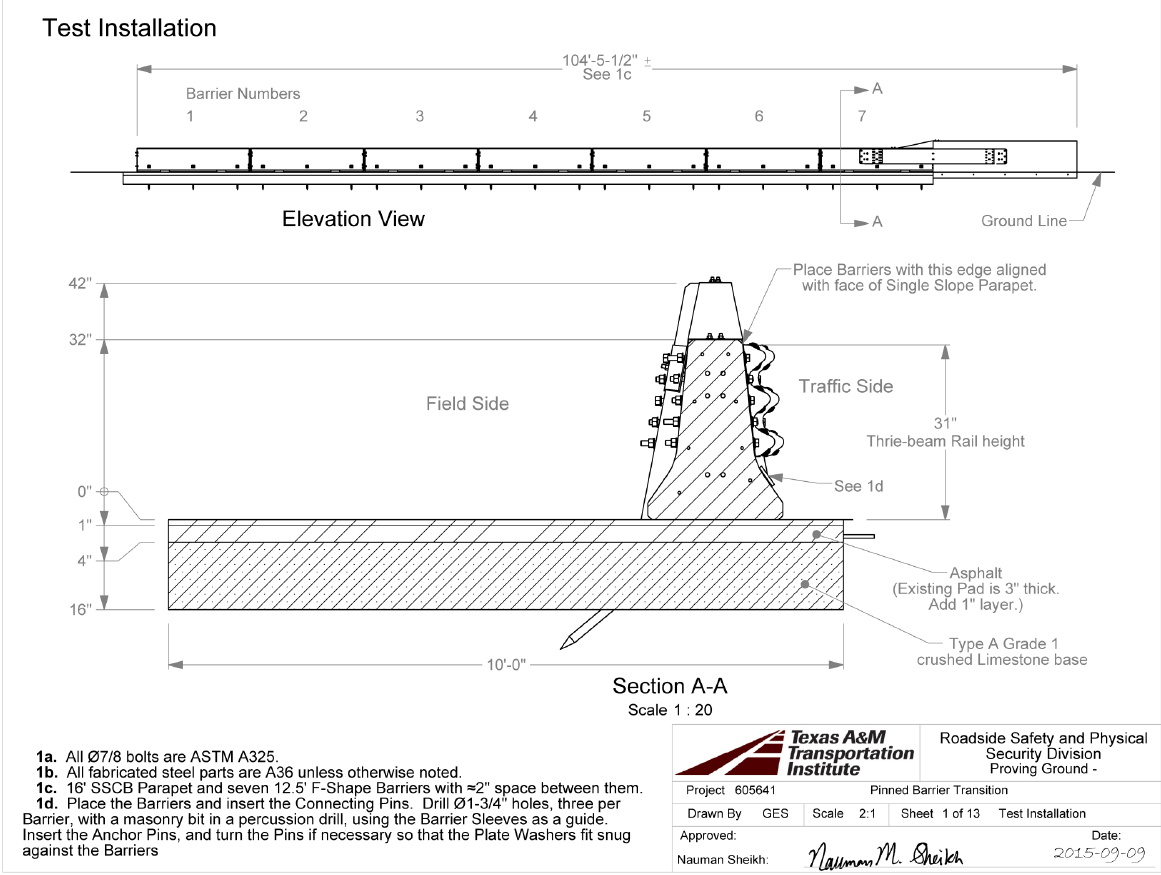

Description: 12.5-in long 32-in tall F-shaped precast concrete barriers anchored to asphalt pavement using two 1.5-in diameter steel pins each segment and connected to 42-in tall permanent single slope

Test Level: 3

System Type: Concrete to Concrete

MASH Test Number: 3-21

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: Roadside Safety Research Program Pooled Fund

Test Article Description

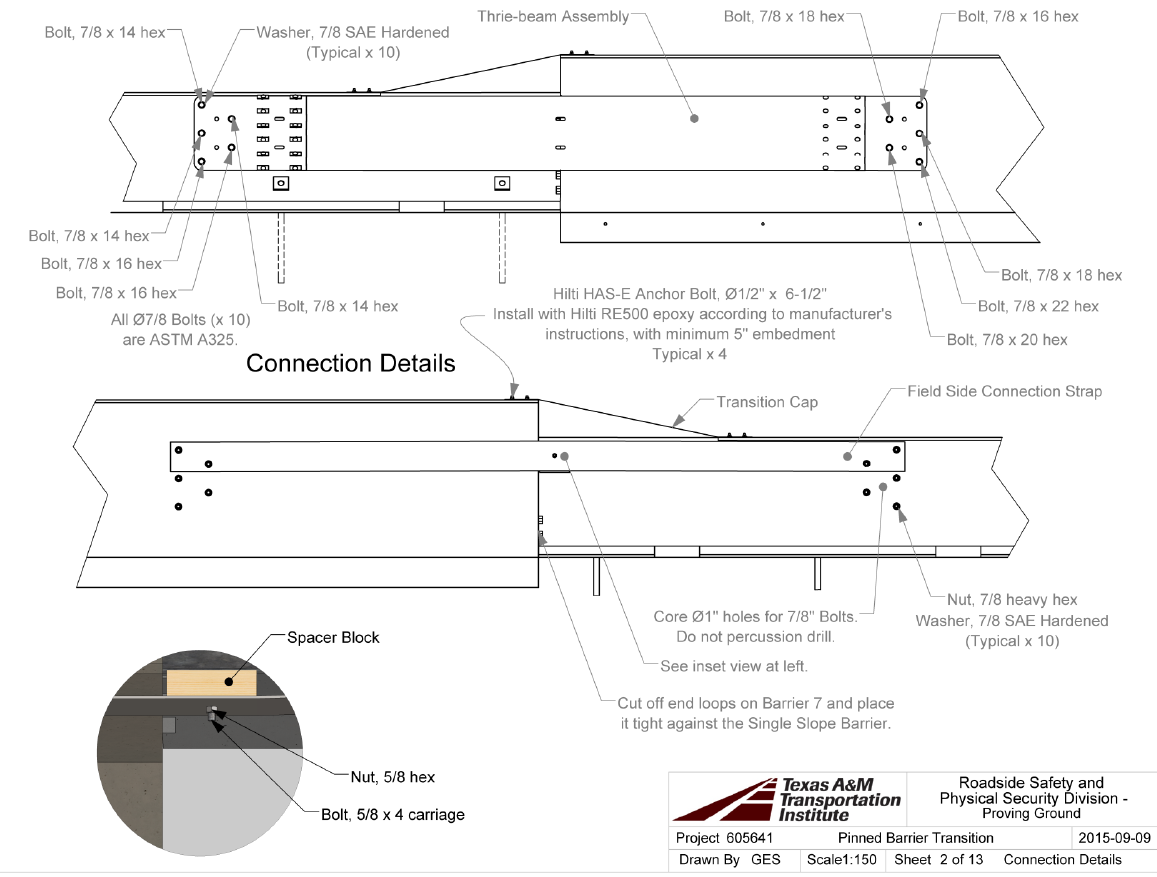

Transition Type: Thrie Beam

Nested: Yes

Rubrail: No

Rubrail Nested: No

Height: 31"

Post Material: None

Top Rail Blockout Depth: None"

Curb Present: No
