QuickChange Moveable Barrier Concrete Reactive Tension System – Fiber Series (QMB- CRTS-F) Transition

Report Number(s): NA

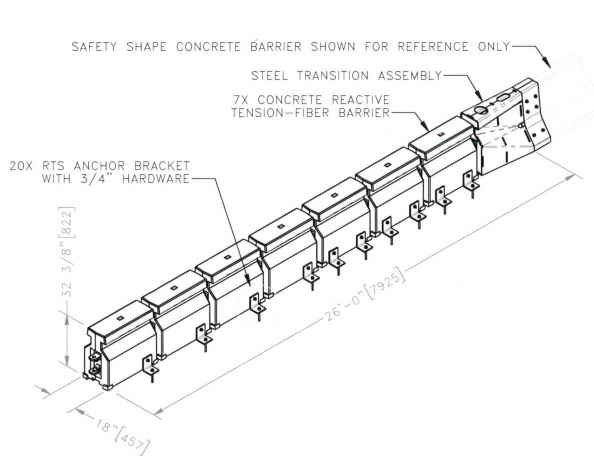

Description: The transition consists of typical CRTS-F barrier segments and VLBs anchored to the roadway in a prescribed method. A steel transition structure provides the shape transition between the CRTS-F and fixed barrier geometries. Steel brackets are used to facilitate the anchorage of CRTS-F segments to the roadway using mechanical or adhesive anchors

Test Level: 3

Eligibility Letter: B-321

System Type: Concrete to Concrete

MASH Test Number: 3-21

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Lindsay Transportation Solutions

Test Article Description

Transition Type: Steel

Nested: No

Rubrail: No

Rubrail Nested: No

Height: 32.75"

Curb Present: No

Report(s):

b321
