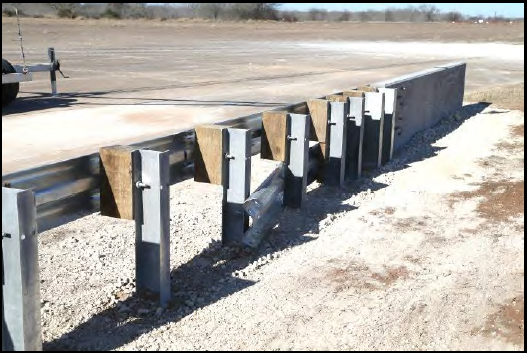

Stacked W-Beam Transition for 31-inch Guardrail

Report Number(s): 604581-1

Description: [FAILED] stacked W-beam guardrail transition design for use with a 31-inch guardrail system

Test Level: 3

System Type: Guardrail to Concrete

MASH Test Number: 3-21

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Fail

Evaluation: Full-Scale Crash Testing

Sponsor: Roadside Safety Research Program Pooled Fund

Test Article Description

Transition Type: Stacked W-Beam

Nested: Yes

Rubrail: Yes

Rubrail Nested: Yes

Height: 31"

Post Material: Steel

Top Rail Blockout Depth: 8"

Curb Present: No
