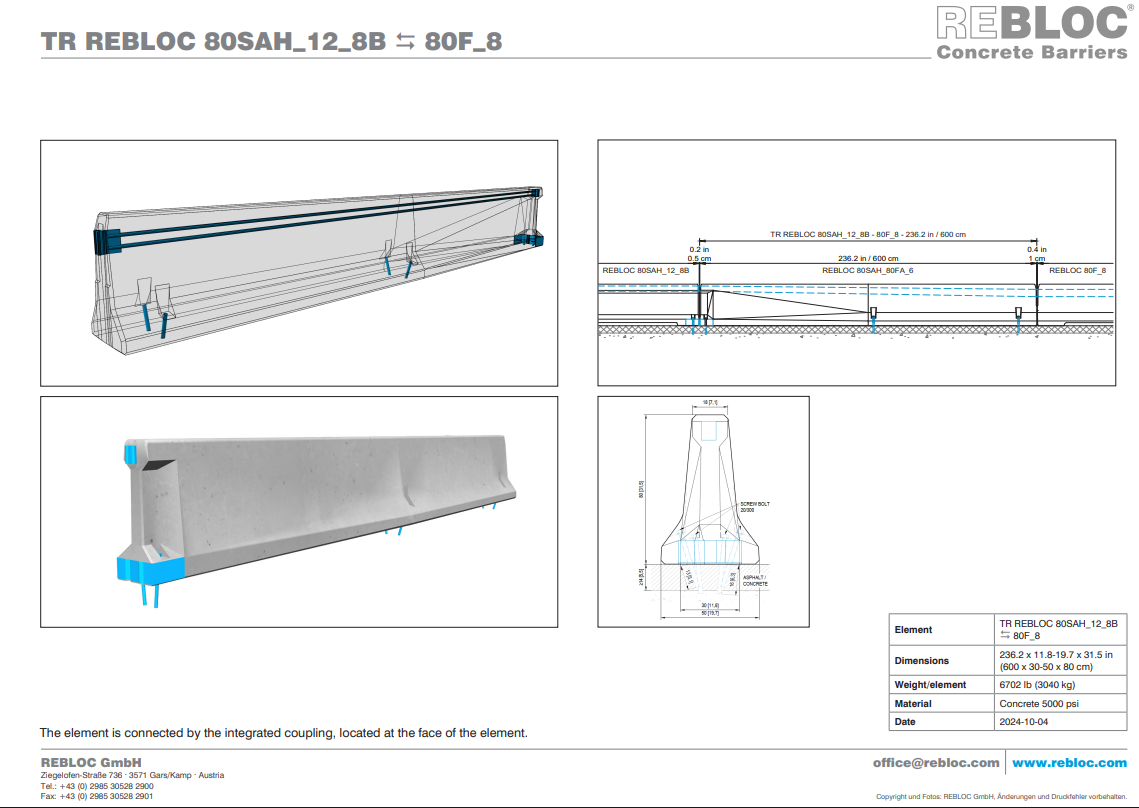

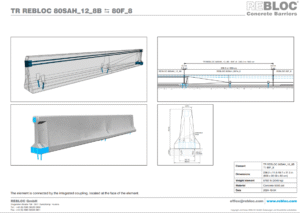

Transition TR REBLOC_80SAH_12 – 80F_8

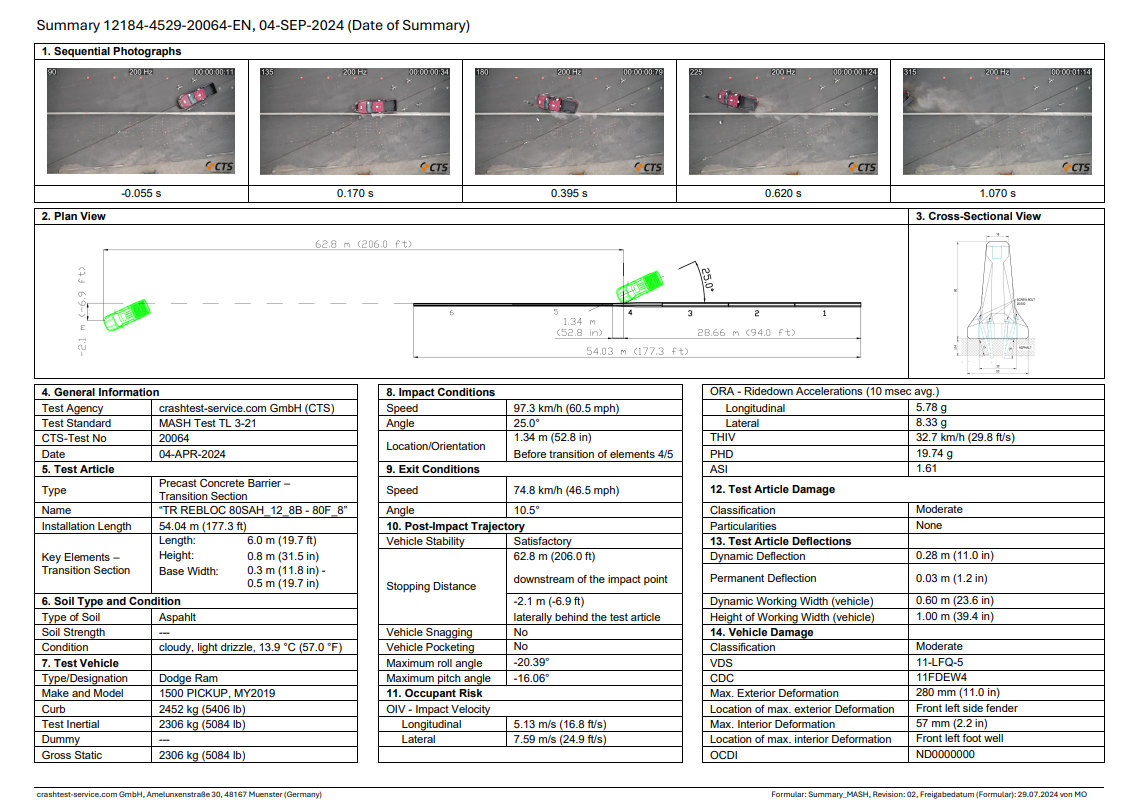

Report Number(s): CTS Test No. 20064

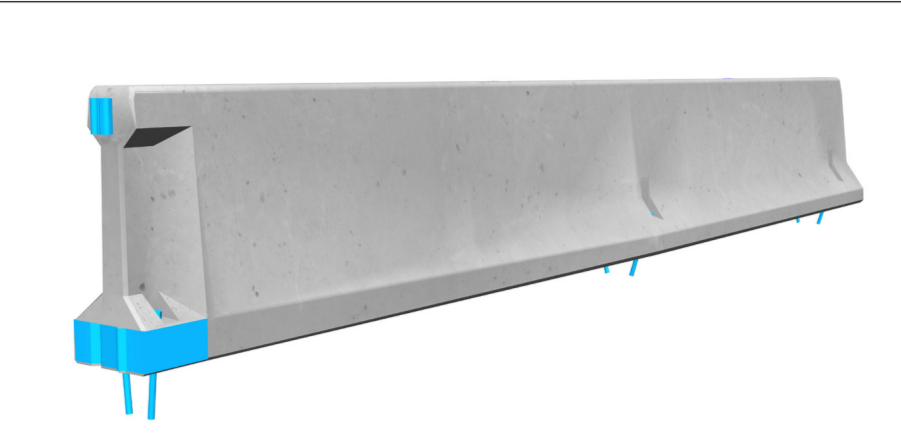

Description: This transition connects the free standing system REBLOC 80F_8 (new jersey profile) with the anchored system REBLOC 80SAH_12_8B (section similar to an I-beam profile). Due to the symmetrical profile it can be used for single-sided and double-sided application.

Test Level: 3

Eligibility Letter: B-395

System Type: Guardrail to Guardrail

MASH Test Number: 3-21

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: REBLOC
