5012M-SS Temporary Sign Support

Report Number(s): NA

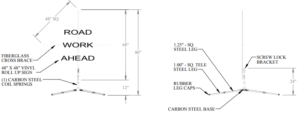

Description: The MDI Worldwide 5012M-SS sign stand is a work-zone traffic control device. The as-tested device consisted of one 48.0 in square vinyl roll up sign, one fiberglass cross brace,and one base assembly. The as-tested device weighed 28.0 lbs .The device had a height of 80.0 in measured to the top of the sign.

Test Level: 3

Eligibility Letter: WZ-388

MASH Test Number: 3-71, 3-72

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: MDI Worldwide

Test Article Description

Mounting Height: 80"

Base Type: NA

Support Type: The base assembly consisted of ascrew lock bracket, asteel base and four telescoping legs.

Support Size: NA

Sign Material: FRP (Fiberglass Reinforced Plastic)

Sign Type: Diamond

Sign Size: 48'' X 48''

Number of Legs: 3
