Apex Dual Recoil

Report Number(s): TR No. BR0223, BR0167

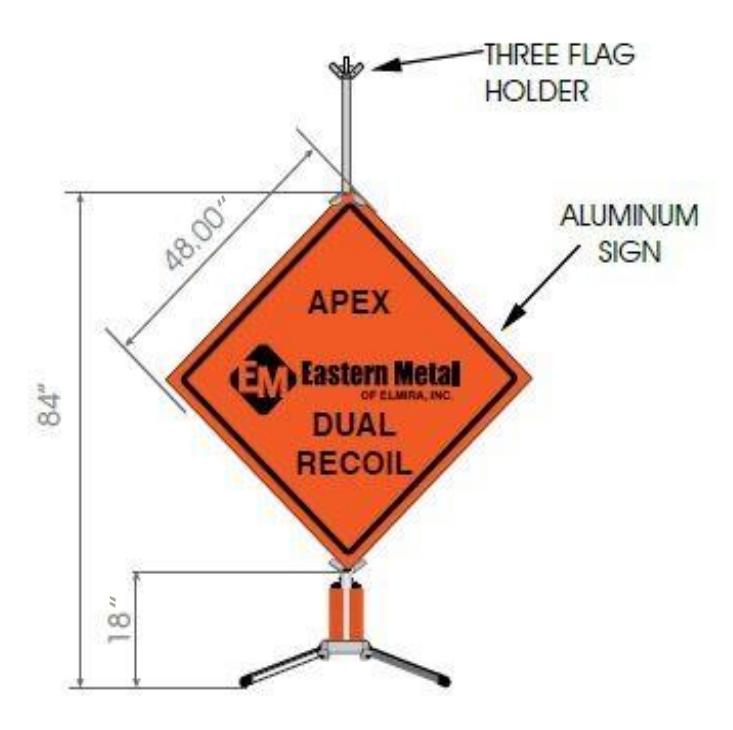

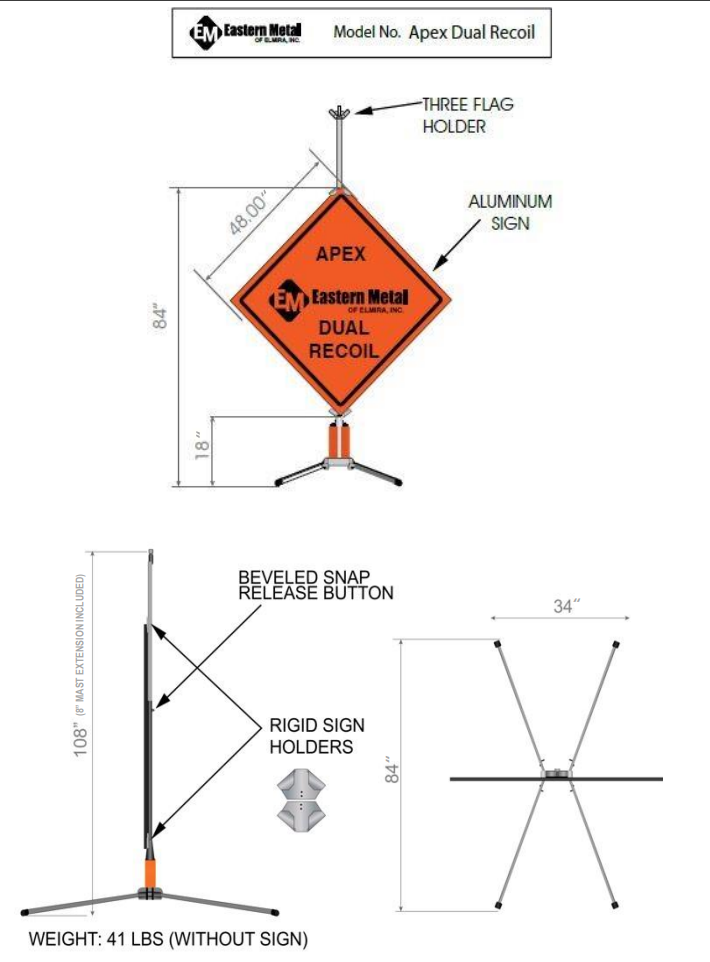

Description: The Eastern Metal Apex Dual Recoil is a 48" x 48" aluminum sign attached to a collapsible sign stand where the two members can be disassembled and folded-up into a compact package for storage and transport. The sign attaches to the vertical 13/16” galvanized steel mast assembly and extends another 24” above the sign with a flag holder at the top for a bottom height of 18” and a top height of 108”. The sign is affixed to the vertical mast assembly with zinc plated steel rigid brackets with an L-pin for ease of use. The vertical mast assembly consists of an upper half and a lower half which are attached with a beveled snap release button. The Apex Dual Recoil sign stand features dual orange powder coated steel springs made of 0.393” diameter wire wrapped around steel castings that connect the bottom of the vertical mast assembly to the black powder coated steel base bracket. The 1” galvanized steel legs are attached to the base bracket with standard nuts and bolts and also feature kick levers to allow the legs to rotate vertically for storage or transportation. The open dimensions are 34” x 84” x 108” (W x L x H) and the sign holder weighs 41 lbs. without the aluminum sign attached.

Test Level: 3

Eligibility Letter: WZ-480

MASH Test Number: 3-71, 3-72

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Eastern Metal Signs and Safety
