Apex Flex with Roll-Up Sign

Report Number(s): Project No. BR0063 & BR0064

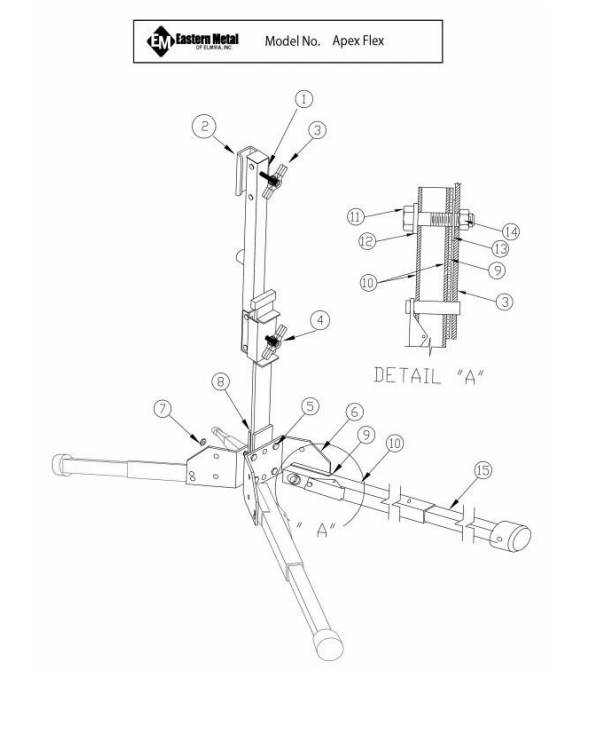

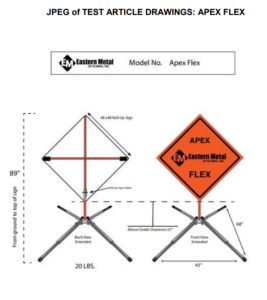

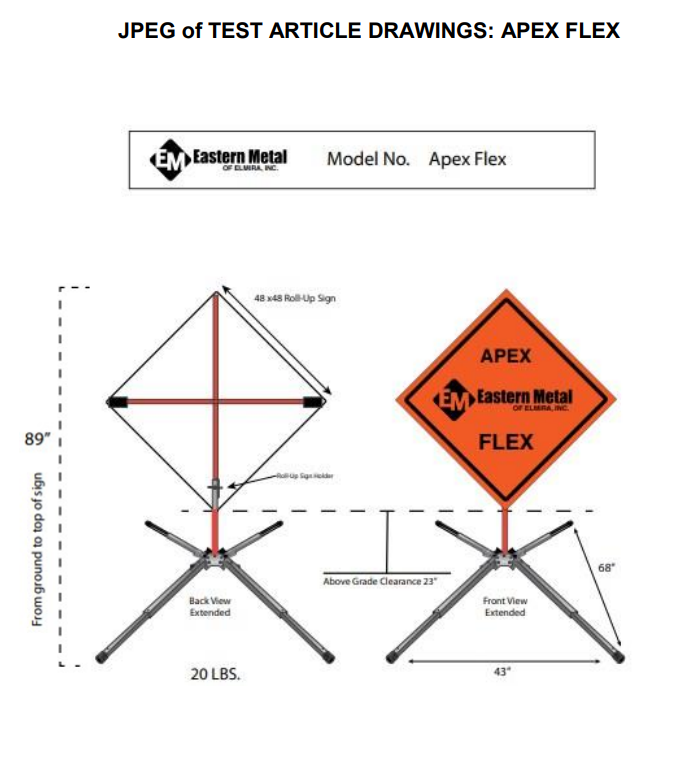

Description: The Eastern Metal of Elmira, Inc., Apex Flex was tested with a 48”x 48" collapsible roll-up sign set at a maximum bottom height of 23". The sign is attached to a collapsible sign stand and the two members can be disassembled and folded-up into a compact package for storage and transport. The collapsible roll-up sign attaches to the sign stand by its spin handle on to the sign’s vertical cross -brace. Another attachment includes the X-connect latch which attaches by sliding the rollup’s vertical sign pocket into the sign stand. Both attachments yield a minimum bottom height of 23” from the ground in order to be fully displayed for viewing by passing motorists and pedestrians. The combination sign and sign stand assembly can be quickly and readily assembled to its display condition and, correspondingly, disassembled and folded-up to its storage and transport condition. The telescoping legs are made of steel and assembled to the steel sign stand base via standard nuts and bolts. The legs have either pull-pins or kick lever releases for quick and efficient releasing from the fold up position. The folded dimensions are 9” x 8” x 30” and weighs 20 lbs. without the roll-up sign attached. Open dimensions are 68” x 43” x 89”.

Test Level: 3

Eligibility Letter: WZ-470

MASH Test Number: 3-71, 3-72

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Eastern Metal of Elmira, Inc.
