Plasticade ADA Pathcade Longitudinal Channelizers

Report Number(s): 690900-PLP23&24

Description: The installation consisted of 34 Plasticade ADA Pathcade Longitudinal Channelizers connected end-to-end longitudinally. Each barrier was anchored by a 40 lb sandbag placed on each of the two traffic-side extended legs. The middle leg remained stowed during the tests.

Test Level: 3

Eligibility Letter: WZ-428

MASH Test Number: 3-90, 3-91

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Plasticade

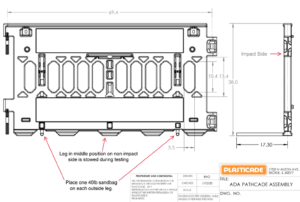

Test Article Description

Height: 38 ""

Section Length: 69.4 ""

Report(s):

WZ-428
