Plasticade SS100/SS105 Sign Stand System with 48″ x 48″ x 5 /s” MDF Wood Sign Substrate

Report Number(s): 76-0438-002, 76-0438-003

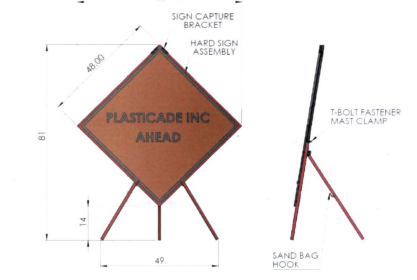

Description: The Plasticade SS100/ SS105 Sign Stand System is a work-zone traffic control device designed to regulate, warn, and advise road users to traverse a section of highway or street in the proper manner. The sign stand consists of a steel tripod frame with components specifically to secure industry standard 1.22 m x 1.22 m signs of various substrates. Crash tests were conducted with plywood signs; eligibility request is for plywood and additional lighter weight substrates. The fixed mounting height of the sign measures approximately 0.36 m above grade

Test Level: 3

Eligibility Letter: WZ-350

MASH Test Number: 3-71, 3-72

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Plasticade

Test Article Description

Mounting Height: 14"

Base Type: Yielding

Support Type: Yet to be updated

Support Size: Yet to be updated

Sign Material: Plywood

Sign Type: Diamond

Sign Size: 48"x48"

Number of Legs: 3
