Plasticade SS340 Sign Stand System with Industry Standard 48″ x 48″ Rollup Sign

Report Number(s): 76-0457-001, 76-0457-002

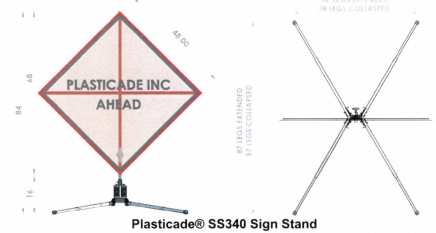

Description: Plasticade's SS340 Sign Stand System is a work zone traffic control device designed to regulate, warn, and advise road users to traverse a section of highway or street in the proper manner. The sign stand consists of a base frame with two upright springs and four extendable aluminum legs and components to secure an industry standard 1.22 m x 1.22 m or smaller rollup fabric sign. The roll up fabric signs were attached to the stand using the integrated clamping mechanism. The as tested mounting height of the sign measures 0.41 m above grade. The 6 legs were extended for testing.

Test Level: 3

Eligibility Letter: WZ-353

MASH Test Number: 3-71, 3-72

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Plasticade

Test Article Description

Mounting Height: 16"

Base Type: Yielding

Support Type: Yet to be updated

Support Size: Yet to be updated

Sign Material: Roll-up fabric

Sign Type: Diamond

Sign Size: 48"x48"

Number of Legs: 1
