Rock Road Safety WB300
Report Number(s): P43070-01, P43071-01

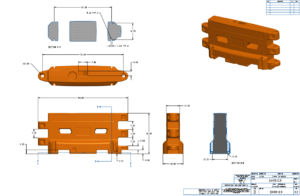

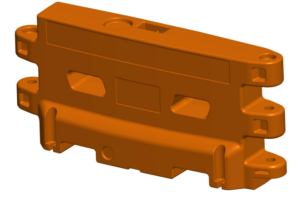

Description: The PowerPak Road Rock Safety WB300 is a water-filled longitudinal channelizing device (LCD) designed to provide a clear visual indication of the intended travel path through a construction work zone while providing demarcated separation between the traveling public and pedestrians. The as-tested Road Rock Safety WB300 system consists of filled modules joined together with 2.00 in (51.00 mm) Diameter, 34.00 in (864.00 mm) height carbon steel grade S235 tube with a wall thickness of (3/32in.) 2.38 mm with a hot dipped galvanized finish. The as-tested system is 154.00 ft. (46.94 m) long measured from end to end. The as tested condition is free standing on concrete without anchoring. The modules were filled with water up to approximately 18.00 in (457.00 mm). The as-tested water-filled modules weighed approximately 610.00 lbs (276.70 kg) when filled up to 18.00 in with water. The individual modules are 80.00 in. (2,032.00 mm) long by 18.00 in. (457.00 mm) wide by 36.00 in. (914.00 mm) tall. The Road Rock Safety WB300 is not designed to function as a positive barrier, but instead its designed and tested as a Longitudinal Channelizing Device (LCD).
Test Level: 2
Eligibility Letter: WZ-456
MASH Test Number: 2-90, 2-91
Proprietary/Non-proprietary: Proprietary
Pass/Fail: Pass
Evaluation: Full-Scale Crash Testing
Sponsor: PowerPak
Report(s):
