Skid-Mounted Dual Wood Post Temporary Sign Support System

Report Number(s): 0-6946-R2

Description: Skid-mounted dual post temporary sign support system with dual 4-inch × 4-inch wood posts

Test Level: 3

MASH Test Number: 3-72

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: Texas Department of Transportation

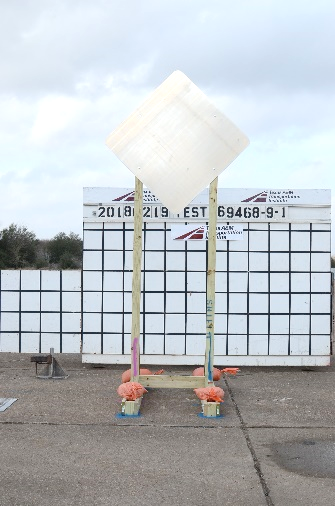

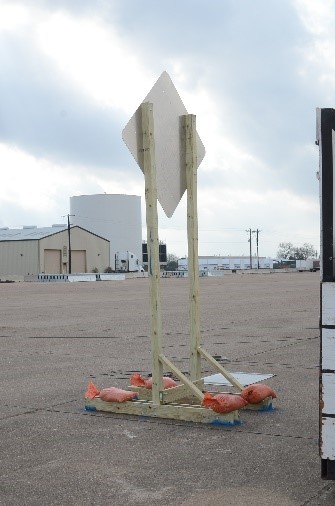

Test Article Description

Mounting Height: 84"

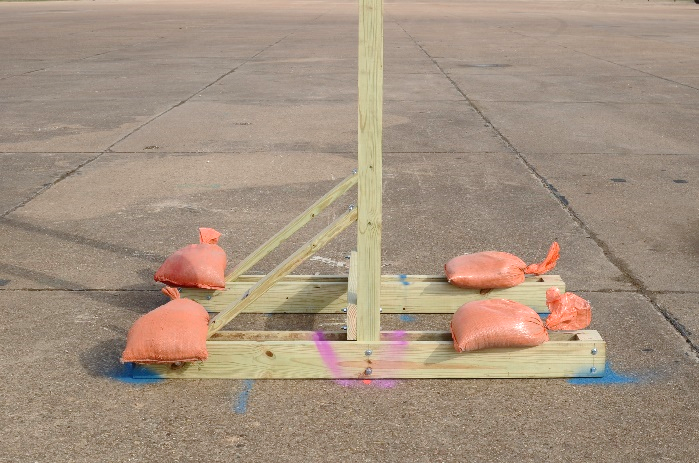

Base Type: Frangible

Support Type: Square Wood Post

Support Size: 4"x4"x132"

Sign Material: Aluminum

Sign Type: Diamond

Sign Size: 48"x48"

Number of Legs: 2
