SZ-412X w/Aluminum Sign

Report Number(s): BR0050

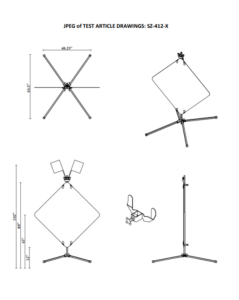

Description: The Bone Safety sign tested in conjunction with the SZ-412-X stand was a 48” x 48” aluminum sign. All sign stands are manufactured from steel components, which have been powder-coated and clear zinc-plated to minimize corrosion. The sign stand is designed using basic nut & bolt construction, so that all component parts may be readily replaced if worn or damaged. The frame of the stand utilizes dual attachment points with ridged brackets to hold and display an aluminum sign. A foldable flag mechanism is used to display a set of warning flags. The flag mechanism is pivotally attached to the vertical cross-brace member. The combination of the sign and sign stand assembly can be quickly and readily assembled to its display condition and, correspondingly, disassembled and folded-up to its storage and transport condition. The sign was set at a height of 12” from ground to bottom of sign. The legs of the stand are non-telescoping, fixed length legs that are painted bright orange powder coated for high visibility. The legs have both a dual pull-pin and kick release mechanism for releasing legs. Pull-pins have oversized heads to allow for gloved hands in winter environments. The as-tested sign stand measures 48.25 ” x 63.5” x 102”.

Test Level: 3

Eligibility Letter: WZ-461

MASH Test Number: 3-71, 3-72

Proprietary/Non-proprietary: Proprietary

Pass/Fail: Pass

Evaluation: Full-Scale Crash Testing

Sponsor: Bone Safety

Report(s):

WZ-461
