TxDOT High-Mounting-Height Temporary Sign Support (Option C)
Report Number(s): TRP-9-1002-15-8
Description: Single aluminum sign mounted on a two-piece vertical supported on 1 3/4-inch and 1 1/2-inch, 12-gauge steel tubing
Test Level: 3
MASH Test Number: 3-71, 3-72
Evaluation: Full-Scale Crash Testing
Sponsor: Texas Department of Transportation

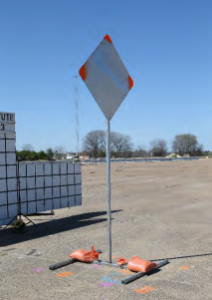

Test Article Description
Mounting Height: 84"
Base Type: Yielding
Support Type: Perforated Square Tube
Support Size: 1.75" x 82"
Sign Material: Aluminum
Sign Type: Diamond
Sign Size: 36" x 36"
Number of Legs: 1
