TxDOT High-Mounting-Height Temporary Sign Support (Option A)

Report Number(s): TRP-9-1002-15-8

Description: Single aluminum sign mounted on 1 3/4-inch, 12-gauge steel tubing

Test Level: 3

MASH Test Number: 3-72

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Fail

Evaluation: Full-Scale Crash Testing

Sponsor: Texas Department of Transportation

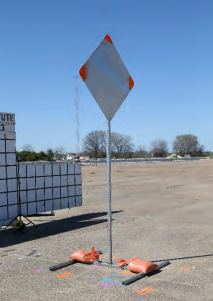

Test Article Description

Mounting Height: 84"

Base Type: Yielding

Support Type: Perforated Square Tube

Support Size: 1.75"x66"

Sign Material: Aluminum

Sign Type: Diamond

Sign Size: 36" x 36"

Number of Legs: 1
