TXDOT SINGLE WOOD POST SKID-MOUNTED SIGN SUPPORT SYSTEM

Report Number(s): 0-6946-R3

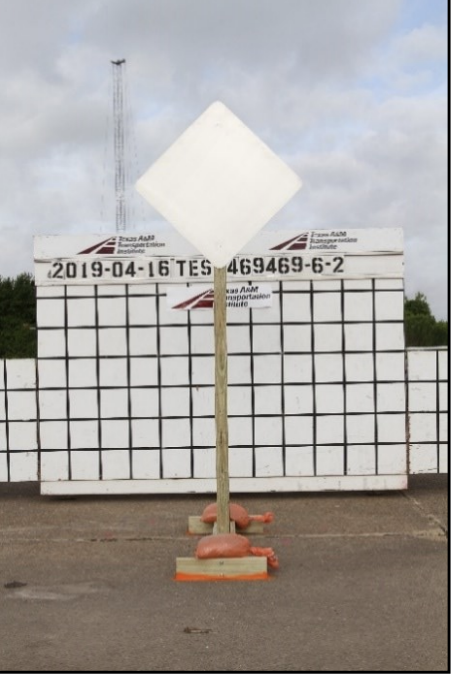

Description: This test installation consisted of a 36-inch-square by 0.10-inch-thick aluminum sign panel secured to a nominal 4-inch by 4-inch wood support with two 3⁄8-inch-diameter through bolts. The panel had rounded corners and was mounted in a diamond orientation, with the bottom corner 84 inches above grade

Test Level: 3

MASH Test Number: 3-72

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: Texas Department of Transportation
