Testing and Evaluation of Large Sign Slipbase Support on Slope at MASH Test Level 3 Impact Conditions
Report Number(s): 612261
Test Level: 3
MASH Test Number: 3-62
Proprietary/Non-proprietary: Non-proprietary
Pass/Fail: Pass
Evaluation: Full-Scale Crash Testing
Sponsor: Roadside Safety Pooled Fund

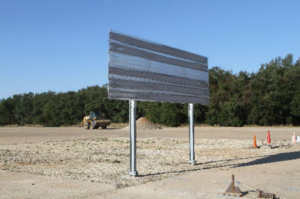

Test Article Description
Mounting Height: 7-ft mounting height relative to travel surface"
Base Type: Slipbase
Number of Legs: 2
Support Type: Steel Beam
Support Size: W6x12
Support Material: Steel
Sign Material: Aluminum
Sign Size: 13.5' x 18.5'
Report(s):
