TxDOT 232-inch Tall Pedestal Pole with Beacon and Solar Assembly

Report Number(s): 0-6946-1

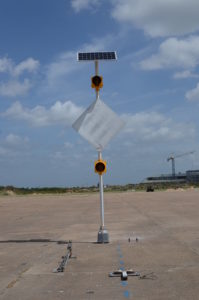

Description: 19'4" tall pedestrian pole with beacon and solar assembly. 4-inch aluminum post with two flashing beacons, and a 16-inch tall aluminum sign base. Base Type: Other

Test Level: 3

MASH Test Number: 3-62

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

Evaluation: Testing + Engineering Analysis

Sponsor: Texas Department of Transportation

Test Article Description

Base Type: Slipbase

Number of Legs: 1

Support Type: Pipe

Support Size: 4" Aluminium post

Support Material: Aluminium

Sign Material: Aluminum

Sign Size: 48" x 48"
