10 BWG Steel Slipbase Support with 14 ft2 Sign Panel

Report Number(s): 0-6363-1

Description: 10 BWG galvanized steel tube with outside diameter of 2.875" and nominal wall thickness of 0.134"; T-shaped bracket to provide bracing for sign panel; 45" x 45" x 0.1" thick aluminum sign. Base Type: Slipbase

Test Level: 3

MASH Test Number: 3-61

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Pass

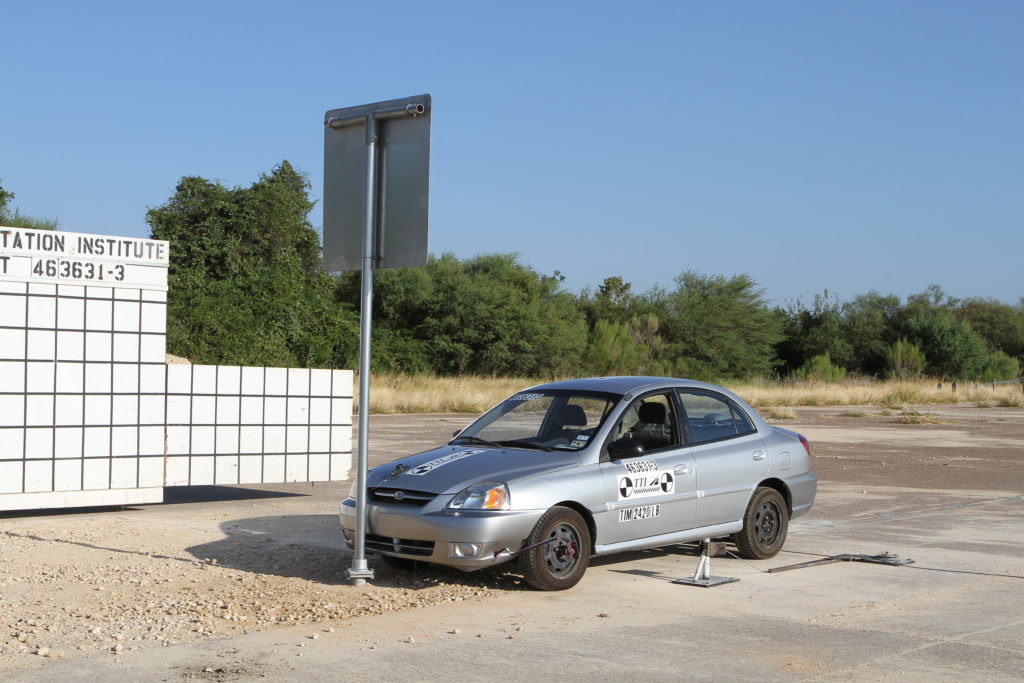

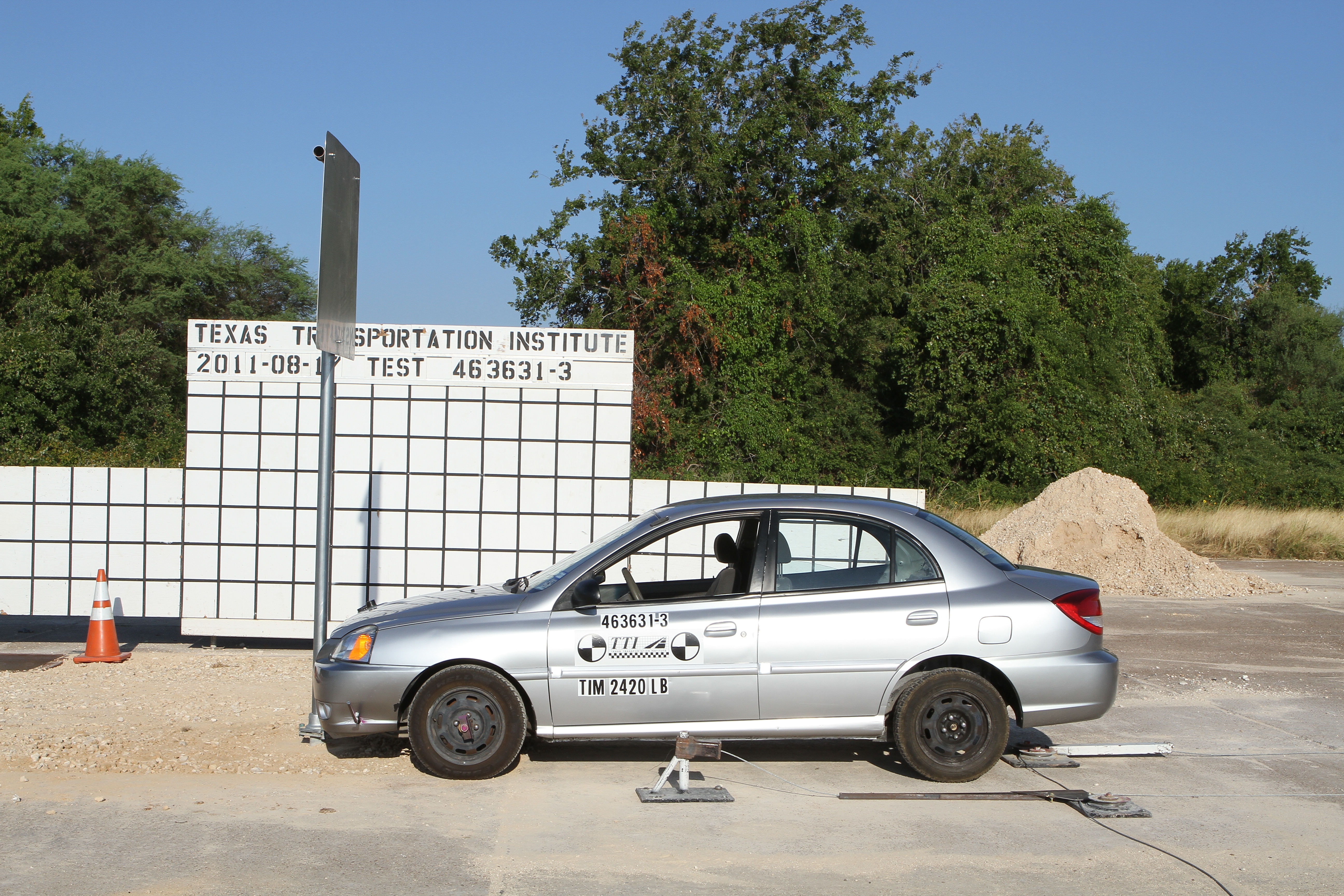

Evaluation: Full-Scale Crash Testing

Sponsor: Texas Department of Transportation

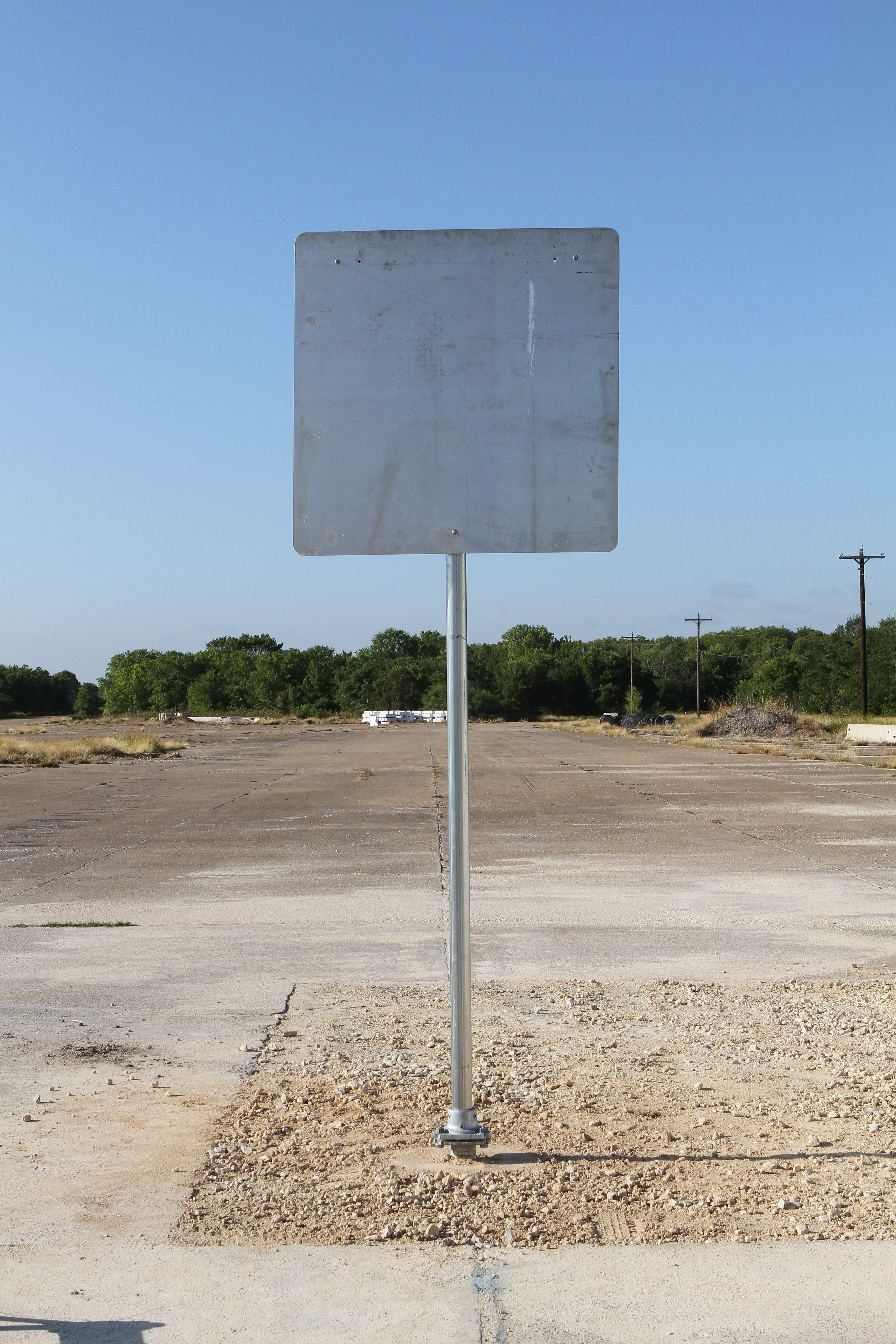

Test Article Description

Mounting Height: 84"

Base Type: Slipbase

Number of Legs: 1

Support Type: Pipe

Support Size: 2-7/8" OD 10 BWG

Support Material: Steel

Sign Material: Aluminum

Sign Size: 45" x 45"
