FAILED – 10 BWG Steel Slipbase Support with 12 ft2 Sign Panel

Report Number(s): 0-6363-1

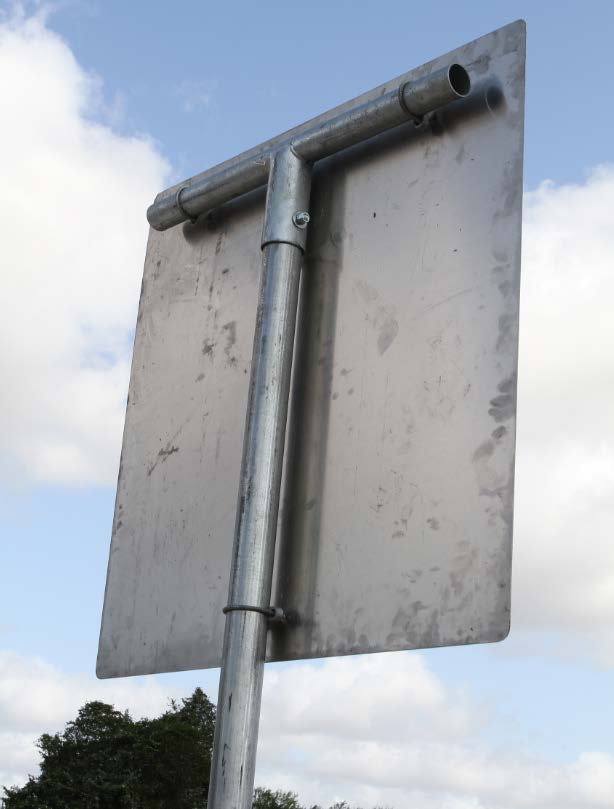

Description: [FAILED]-10 BWG galvanized steel tube with outside diameter of 2.875" and nominal wall thickness of 0.134"; T-shaped bracket to provide bracing for sign panel; 42" x 42" x 0.1" thick aluminum sign. Base Type: Slipbase

Test Level: 3

MASH Test Number: 3-61, 3-62

Proprietary/Non-proprietary: Non-proprietary

Pass/Fail: Fail

Evaluation: Full-Scale Crash Testing

Sponsor: Texas Department of Transportation

Test Article Description

Mounting Height: 84"

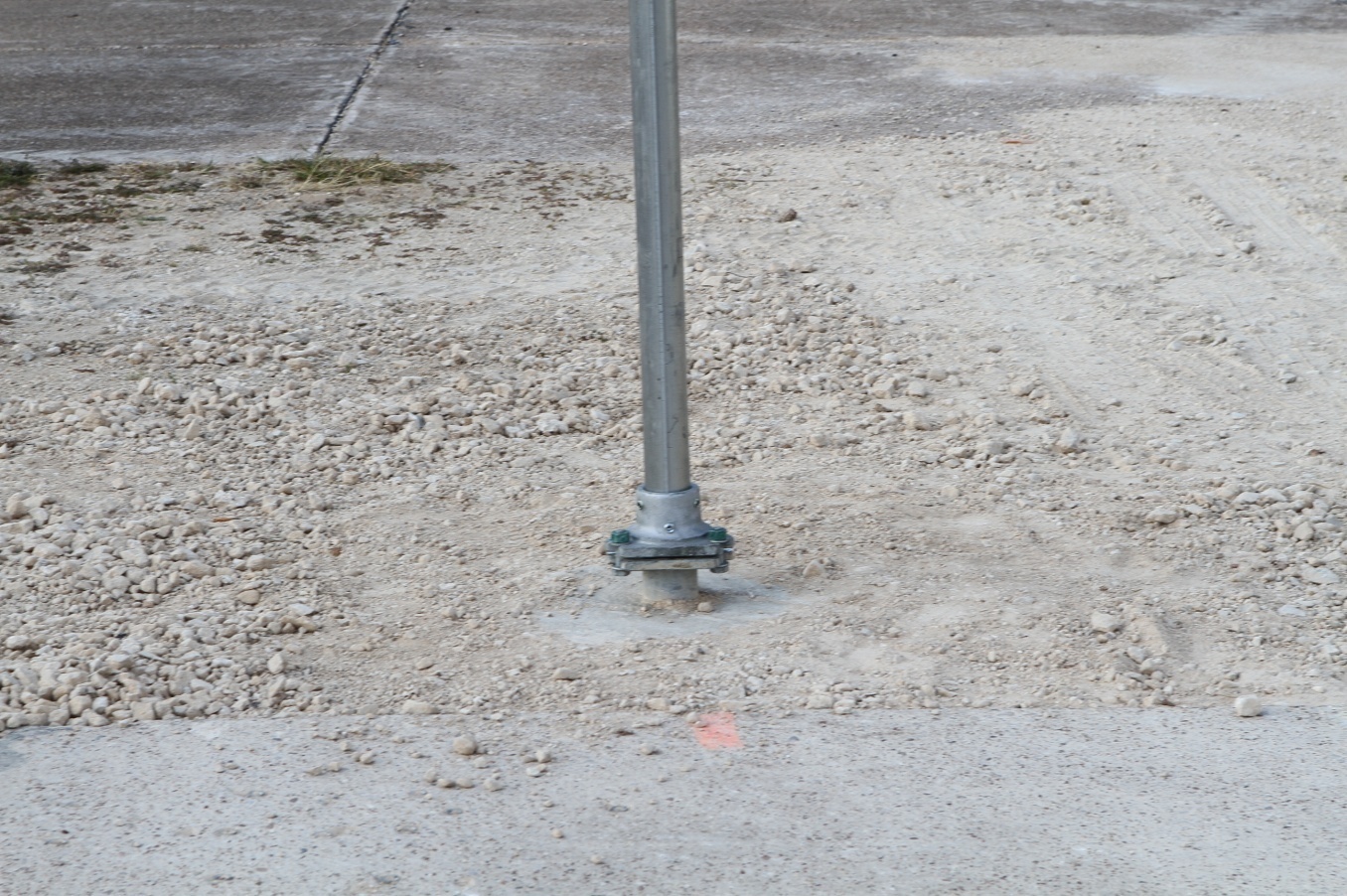

Base Type: Slipbase

Number of Legs: 1

Support Type: Pipe

Support Size: 2-7/8" OD 10 BWG

Support Material: Steel

Sign Material: Aluminum

Sign Size: 42" x 42"
